50W VHF 6 Cavity Duplexer N Connector FREE tune radio repeat New 136-180Mhz

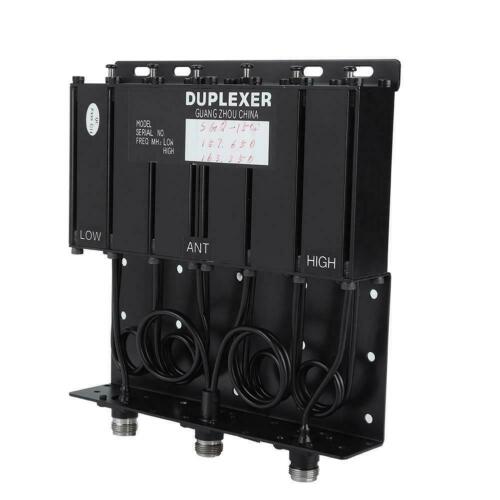

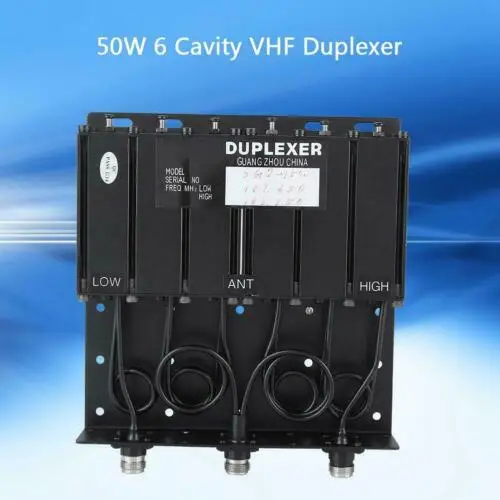

VHF 6 Cavity Duplexer for Radio-Tone Repeater 136~180MHz SGQ-150D 50W
SGQ-150D
|
Type |
SGQ-150D |
||
|
Frequency Range |
136~180MHz |
||
|
VSWR |
≤1.4 |
||
|
Bandwidth(KHz)) |
±200 |
±200 |
±150 |
|
Frequency Spacing(MHz) |
12 |
5.7 |
3.8 |
|
Insertion Loss |
≤1dB |
≤0.8dB |
≤1.2dB |
|
Isolation |
≥75dB |
||
|
Maximum Input Power |
50W |
||
|
Normal Impedance |
50Ω |
||
|
Connector |
N-F/BNC-F |
||
|
Operating Temperature |
-30℃~+90℃ |
||
|
Operating Humidity |
5%~95% |
||
|
Dimensions |
218×190×38 |
||
Remark : please make note what frequency you want ( High / Low)Mininum Tx and Rx frequency difference :UHF 3.8Mhz-12Mhz and standard Termination (N,BNC)on paypal payment ,we will turn OK before ship out.
Support Frequency: VHF 136-180Mhz
the Frequency space must >3.8Mhz,for example: 150Mhz-154.8Mhz,N Connector Connector.
Package:
1pcs duplexer
