Sale!

AnyTone AT-500M II VOX Mobile CB Radio for Truck 12/24V AM/FM 26-27Mhz, Noise reduction, WX weather channel Car Radio

$153.00$169.00

& Free Shipping
Guaranteed Safe Checkout
Sold By: Two Way Radio

2024 NEW AnyTone AT-500M II VOX Mobile CB Radio

for Truck 12/24V AM/FM 26-27Mhz, Noise reduction,

WX weather channel Car Radio

AnyTone MOBILE CB RADIO AT-500M II Main Functions and Characters

●Output power AM/FM 4W

●RF gain and Mic gain control

●2K/4K FM deviation selection

●Talkback /PA function

●Hi-cut function

●Echo/RB/Key beep

●NB/ANL Function

●CTCSS/DCS code

●VOX function

●Two scan mode

●Support both Electret and Dynamic microphone

●NRC (TX and RX Noise reduction)

●WX weather channel

●12/24V

GENERAL

Modulation Mode AM/FM
Frequency Range 26.965-27.405MHz
Frequency Tolerance ±5.0ppm
Input Voltage 12/24V

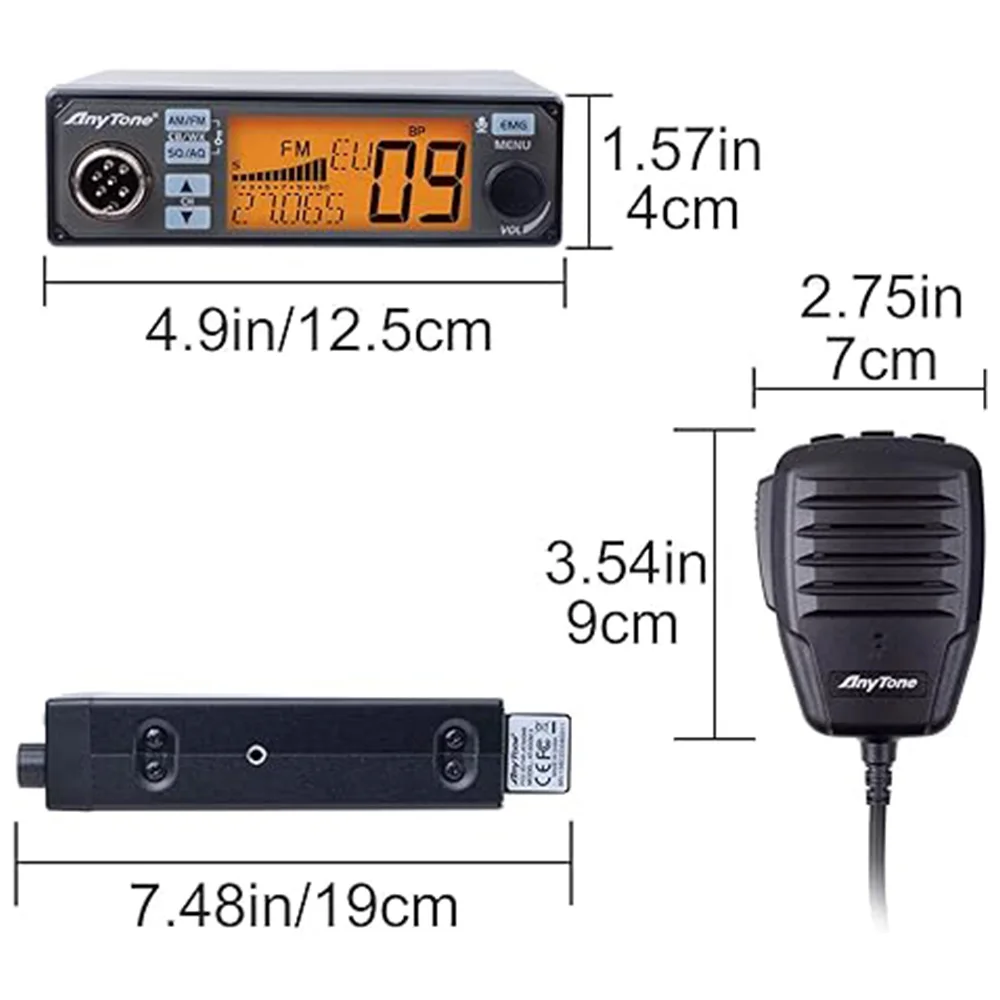

Dimensions 185x124x38mm
Weight 620g
Operating Temperature Range -20℃ to +50℃
Current Drain:Transmit 3A MAX,Receive Squelched: 0.3A,VOL Max: 0.7A
Antenna Connector UHF, SO-239

TRANSMITTER

Power Output 4 Watts FM/AM
Transmission interference inferior to 4nW
Frequency Response 300-3000Hz
Modulated signal distortion inferior to 5%
Output Impedance 50 ohms

RECEIVER

Sensitivity Less than 1uV for 10dB(S+N)/N
Image Rejection 70dB
Adjacent Channel Rejection 60dB
IF Frequencies 1st 10.695MHz,2nd 455KHz
Automatic Gain Control(AGC) Less than 10dB change in audio, Output for inputs from 10 to 50000uV
Squelch less than 1uV
Audio Output Power 2Watts at 8Ω less than 10% distortion
Frequency Response 300-3000Hz

Weight 1.5 kg
Dimensions 500 × 400 × 150 mm
Color

AT-500M II, AT-500M II-MAG-1345
