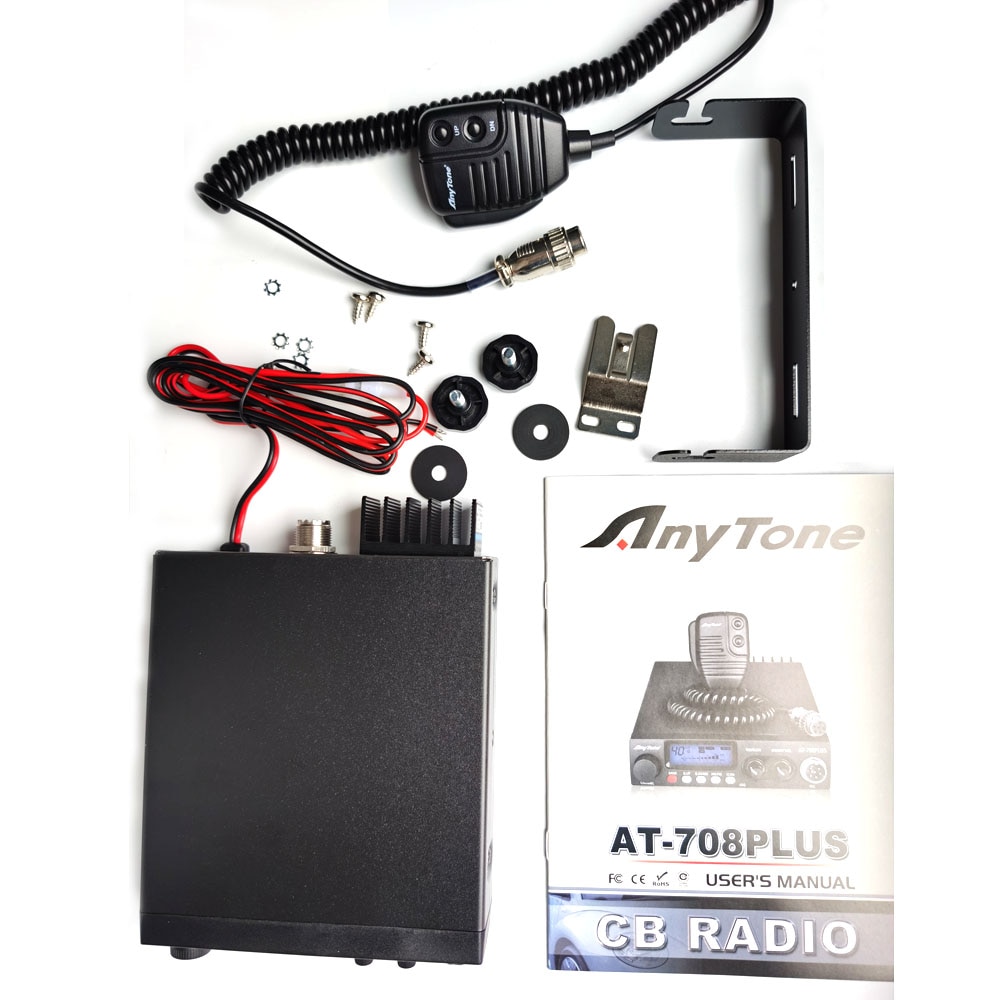

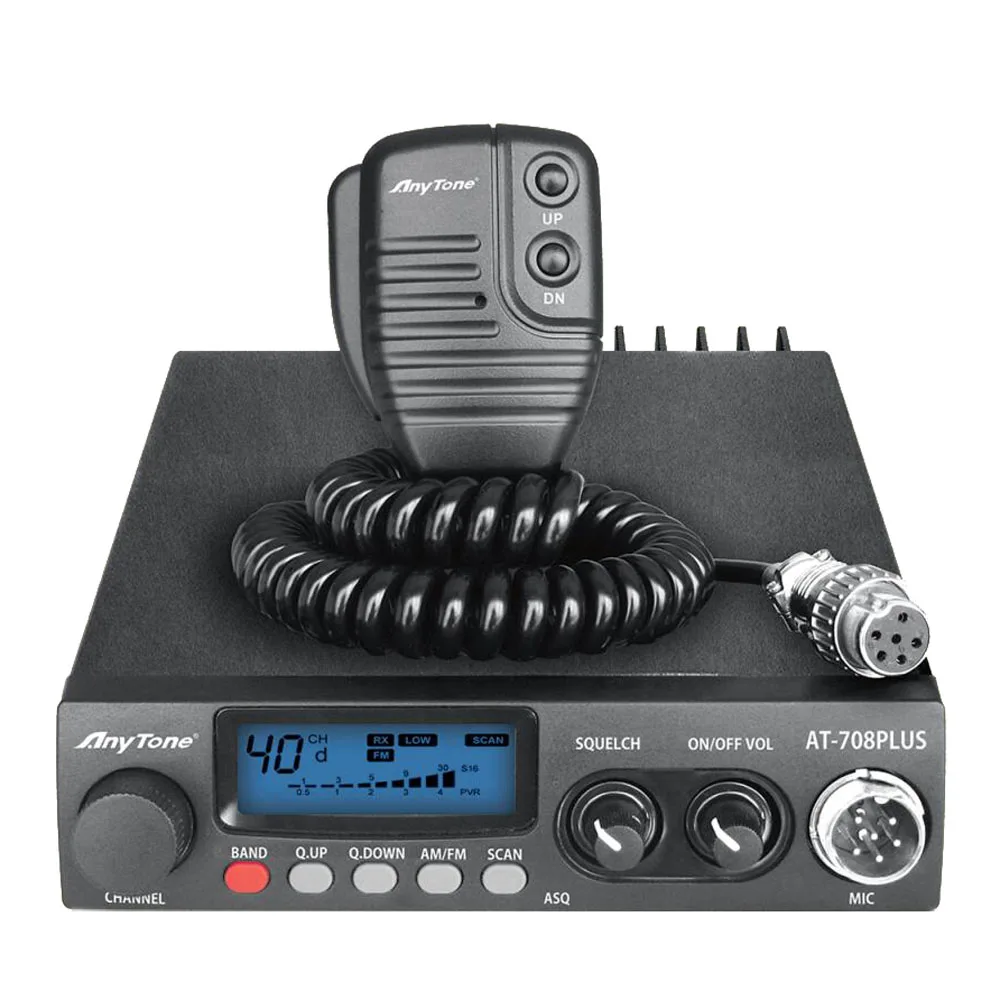

Anytone CB Radio AT-708 plus 24.265-29.655MHz 8W 480AM-480FM High Quality 27MHz Mobile Radio Station Communciator
|
TECHNICAL SPECIFICATIONS |
|
|
GENERAL |
|
|
Channels |
480AM-480FM |
|
Frequency Range |
24.265-29.655MHZ |
|
Frequency Control |
PLL |
|
Operating Temperature Range |
10*/+55° C |
|
DC input voltage |
13.2V DC +15% |
|
Size |
180 (L)x35 (H)x140 (P) mm |
|
Weight |
0,850 kg |
|
RECEIVER |
|
|
Recelving system |
dual conversion superheterodyne |
|
Intermediate frequency |
1° IF: 10.695 MHz●I° IF: 455 KHz |
|
Sensitvity |
0.5μV for 20 dB SINAD in FM mode |
|
|
|
|
Audio output power @10% THD |
2.0W@ 8ohm |
|
Audio distortion |
less than 8% @1 KHz |
|
Image rejection |
65 dB |
|
Adjacent channel rejection |
65 dB |
|
Signal/Noise ratio |
45 dB |
|
Current drain at stand/by |
250mA |
|
TRANSMITTER |
|
|
Output power |
8W @ 13.2V DC |
|
Modulation |
AM: from 85% to 95% |
|
|
|
|
Frequency response |
from 400 Hz to 2.5 KHz |
|
Output impedance |
RF 50 Ohm unbalanced |
|
SignalNoise Ratio |
SignalNoise Ratio |
|
Current drain at stand/by |
1100mA (Power position with no modulation) |
