All of our items are Brand New

Model

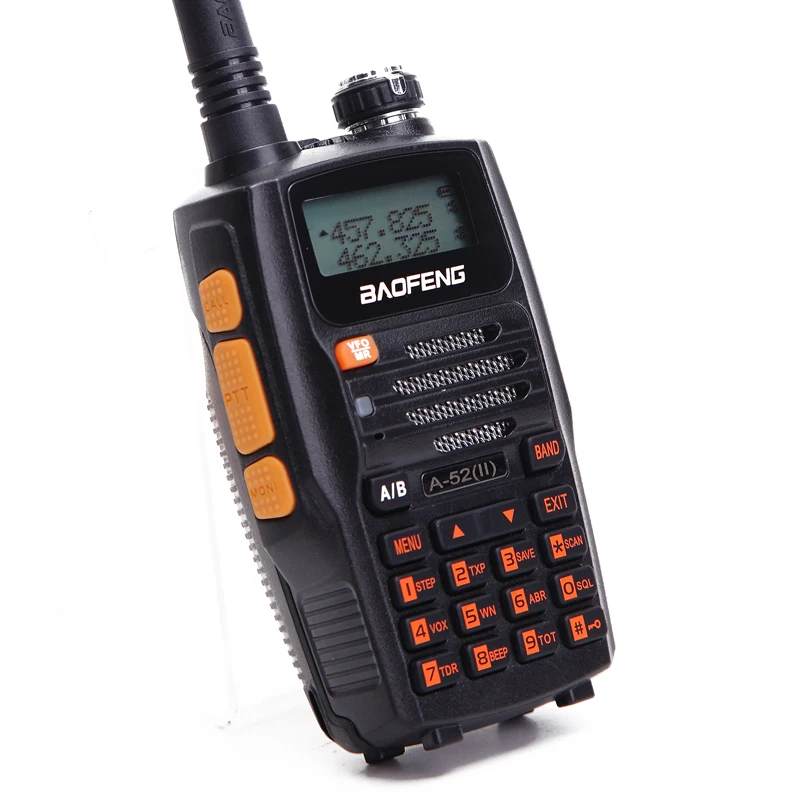

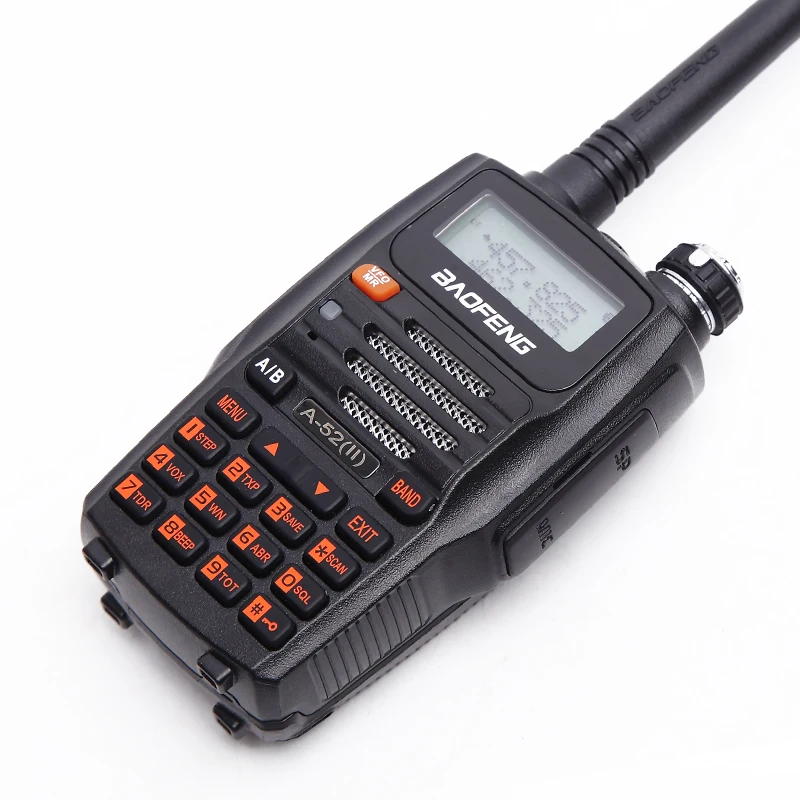

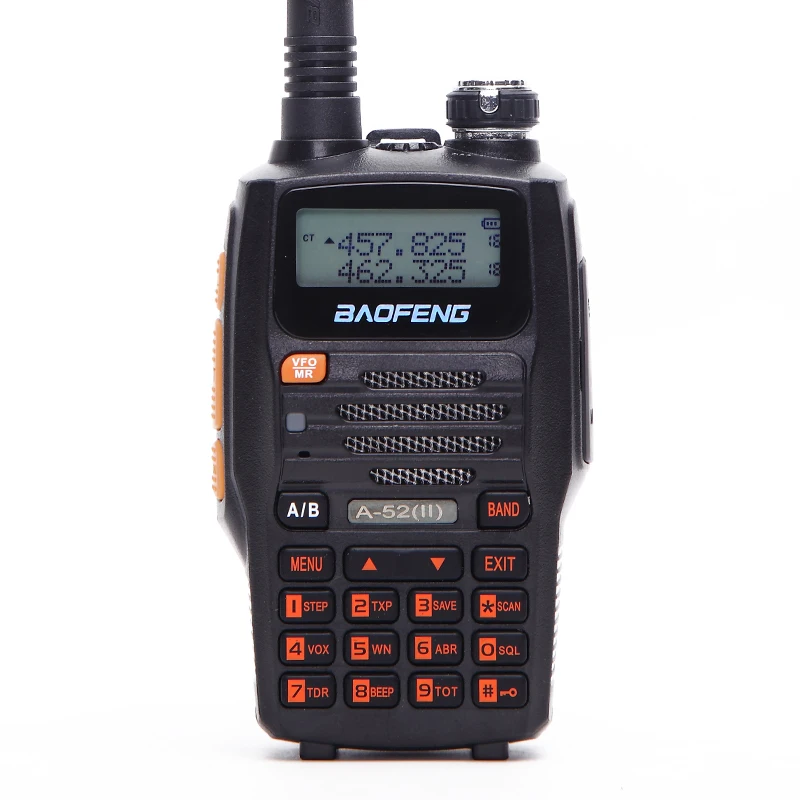

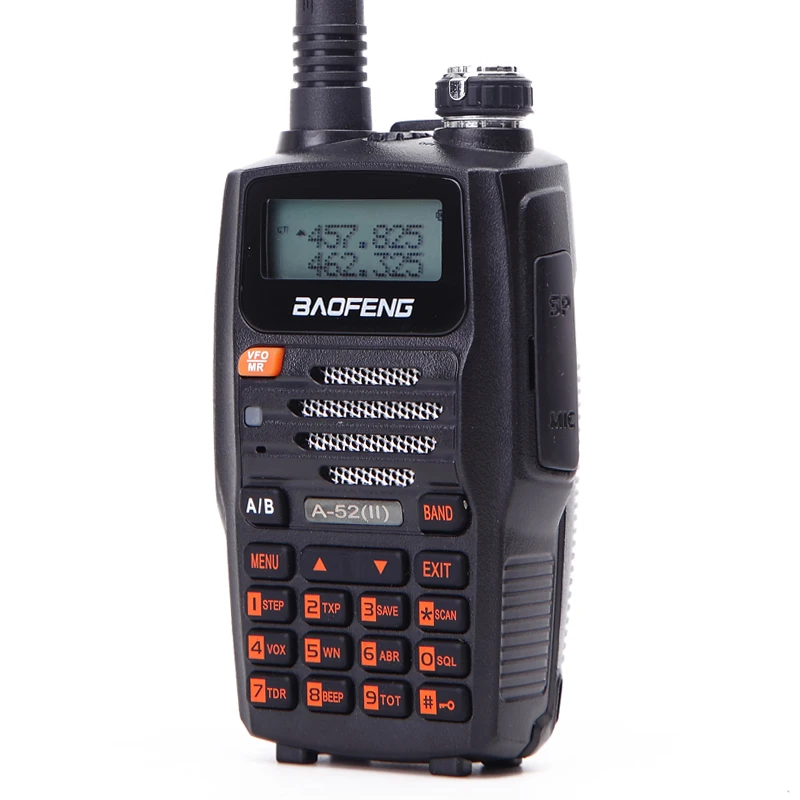

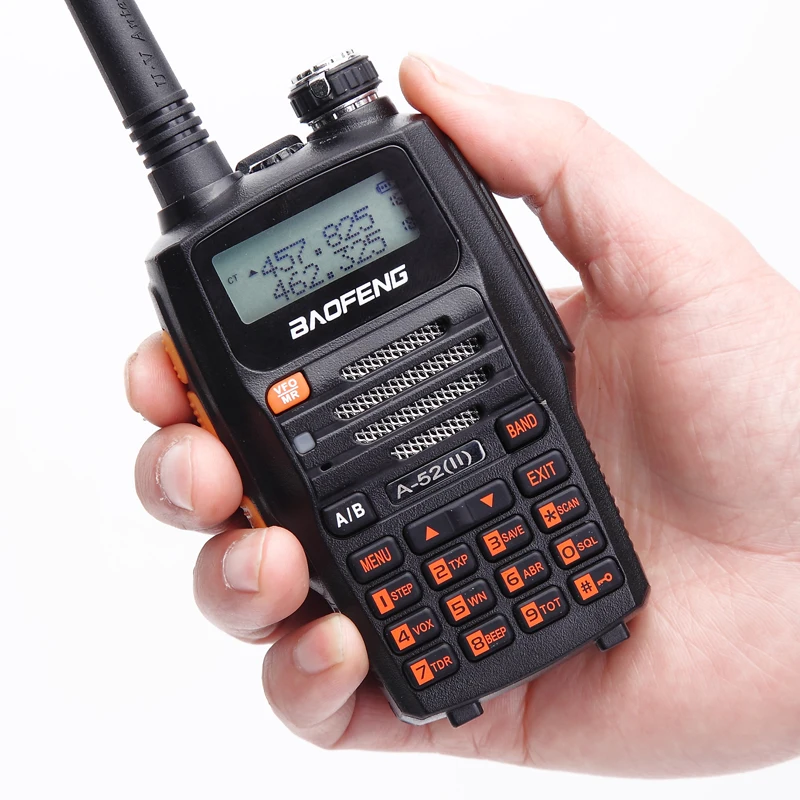

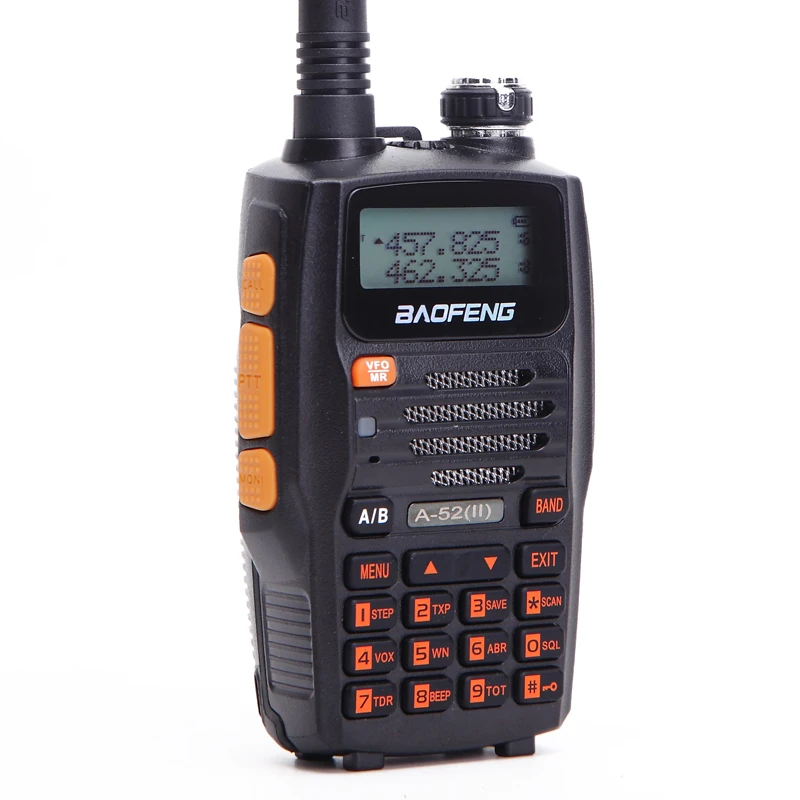

BaoFeng A-52(II)

Dual band / dual display / dual standby

A/B band independent operation

128 groups channels storage

Shortcut menu operation mode

High/Low TX power selectable

Busy channel lock-out

VOX function

Yes

Busy lockout function

Yes

Scanning function

Yes

Monitor function

Yes

LCD display

Yes

Dual display

Yes

Battery voltage display function

Yes

Channel name display and editing functions

Yes

Signal strength indicator

Yes

Keypad lock function

Yes

Built-in Led torch

Yes

FM radio

Yes

Emergency Alarm

Yes

Low battery alarm

Yes

Power saving function

Yes

Chinese and English voice prompt

Yes

PC software programmable

Yes

Reset function

Yes

Basic Specification

Frequency Range

136-174MHz 400-520MHz(Dual Band)

Channel

128CH

Rated Voltage

7.4V

Frequency stability

±2.5ppm

Working temperature

-20°C~+50°C

Step Frequency

2.5/5/6.25/10/12.5/20/25kHz

Work Mode

Same Frequency simplex Operation or Different Frequency simplex Operation

Antenna Impedance

50 ohm

Battery Capacity

4800mAh (Li-ion Battery)

Dimension

110X58X32mm

Weight

193g (Excluded Antenna)

Antenna weight

12g

Transmitter

Output power

8W

Modulation Mode

16KøF3E/11KøF3E

Maximum Frequency Deviation (W/N Band)

<=5 kHz/<=2.5kHz

Spurious Power

<=7.5µW

Adjacent channel power

<=-65dB/<=-60dB

CTSCC/DCS Frequency Deviation(W/N Band)

0.7±0.1kHz (W), 0.4±0.1kHz (N)

Modulation Sensitivity

8?12mV

Transmitting Current

1.4A

Receiver

Sensitivity

<0.20µV (12dB SINAD)

Audio Power

1W

Audio Distortion

<10%

Inter modulation Interference Resistance

>=65dB (W), >=60dB (N)

Adjacent channel Sensitivity (W/N Band)

>=65dB (W), >=60dB (N)

Receiving Current

<=380mA
