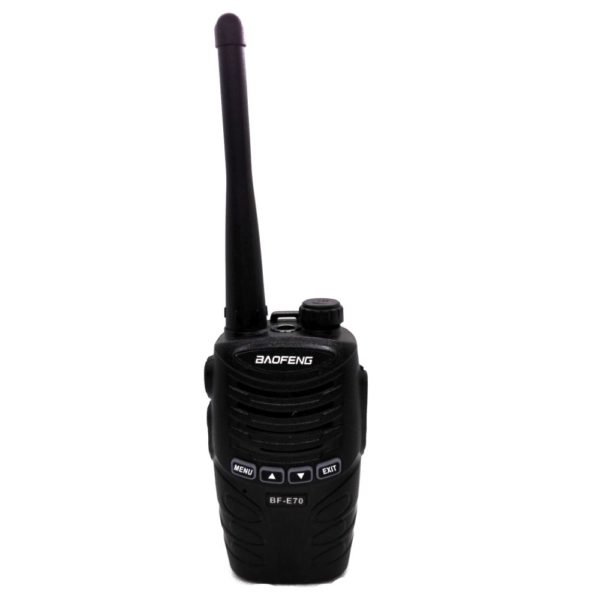

Baofeng BF-E70 UHF 400-470MHz 128CHS Small Portable Transceiver

Baofeng BF-E70 UHF 400-470MHz 128CHS Small Portable Transceiver

Functional Features
1. Working frequency band
FM 65-108 MHZ (RX) UHF 400-470 MHZ (RX/TX)

2. Up to 128 memory channel ,PC Programming frequency and other kinds of data

3. Digital tuning FM radio

4. Chinese/English language , operation more convenient

5. Channel frequency speech function

6. 50 CTCSS/105 DCS

7. Emergency Alarm

8. Automatic power saving function. To reduce the power consumption, in order to achieve prolong machine work

9. VOX Function, let users hands free, without press the PTT button normal calls

10. High/low voltage warning.

11. Manual/automatic keyboard lock

12. Relay 1750 HZ forwarding signaling

13. Computers (reading and writing frequency and function Settings)

14.Flash Light



Specifications:

Frequency Range : UHF 400-470 MHZ

RF Rated Power : < 3 W

Channel Capacity : 128

Channel Spacing : 25KHz(Wide Band), 12.5 K  (Narrow Band)

Operated Voltage : 3.7 V

Battery : 3800 MAh Li-ion

Frequency Stability :±2.5ppm

Operated Temperature : -20°c-+60°c

Antenna Impedance : 50Ω

Dimensions (W×H×D) (with battery, without antenna) : 58 x 99.5 x 30.5 mm

Communication Range : 1-3 km



Transmitter

RF Power Output : 8W ( Real Power < 3W)

Modulation : F3E

Spurious Emission : ≤65dB

Transmitting Current : ≤1.5A

Receiver

Sensitivity (12dB SINAD) : ≤0.25 uV

Intermediation : ≥65dB

Adjacent Channel Selectivity : 65dB/60dB(W/N)

Spurious Response : ≥65dB

Audio Distortion : < 10%



Package Include:

1 X Baofeng BF-E70 Small Portable Transceiver

1 X Antenna

1 X Li-ion battery pack

1 X Charger

1 X Belt clip

1 X User’s manual

1 X Headset
