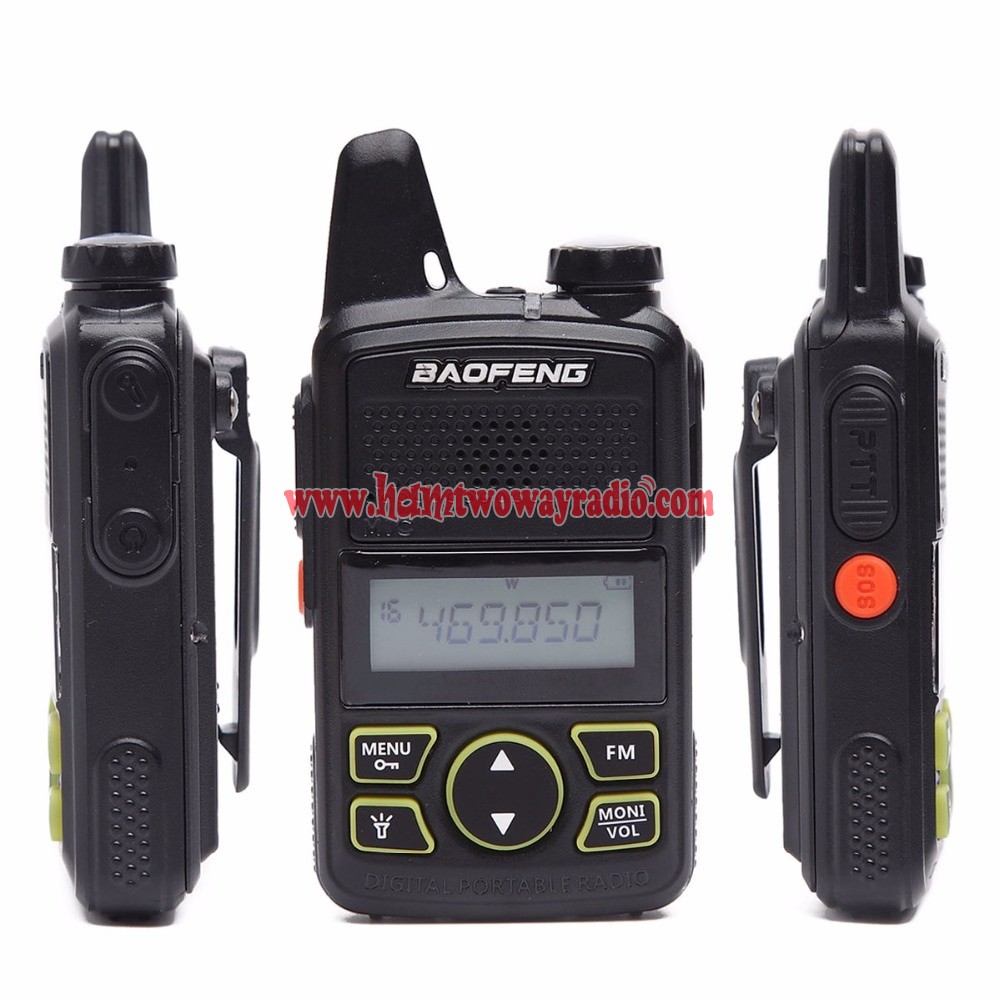

Baofeng BF-T1 Mini Walkie Talkie UHF 400-470mhz Portable Two Way Radio Ham Radio Transceiver Micro USB Interphone+cable
All the following products are compatible with Baofeng BF-T1 Radio
Feature & Specification
Broadcast FM radio receiver (65-108Mhz)

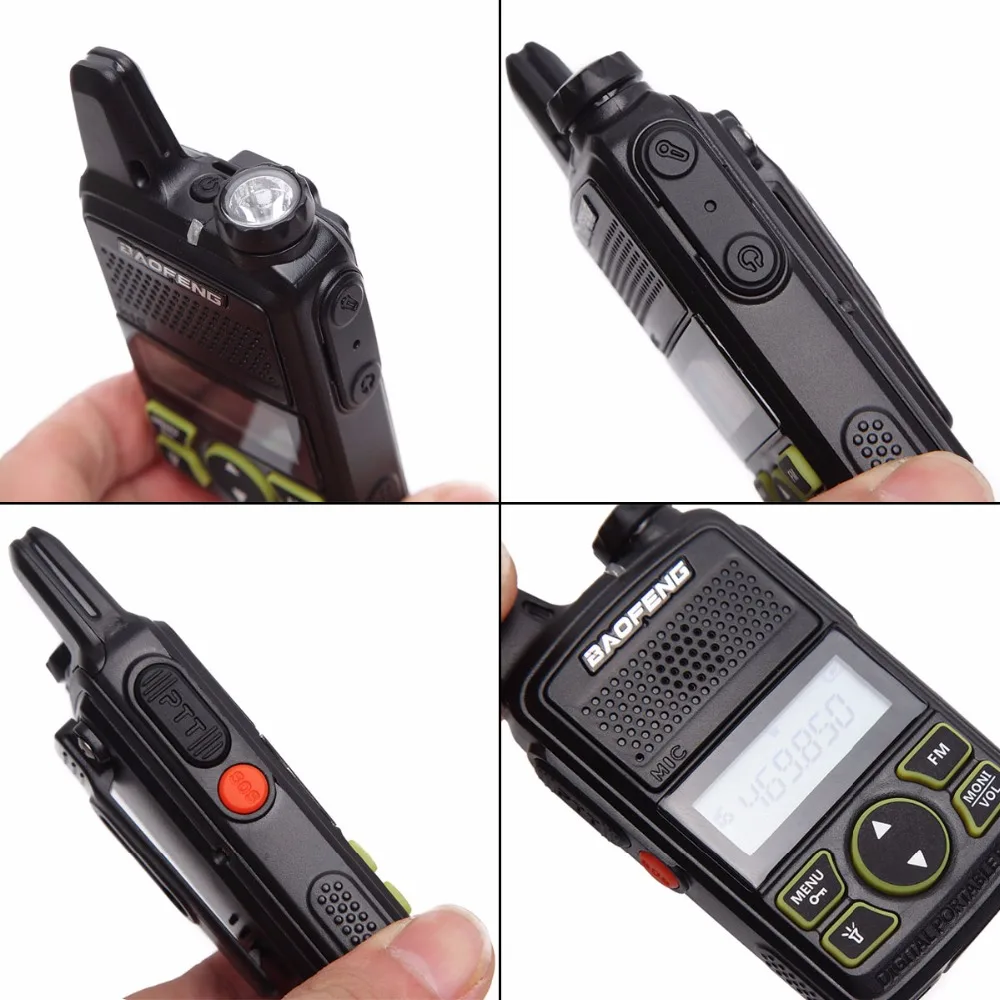

Alarm and built-in LED flashlight
Max 20 channels
Time count down (0.5 / 1hr / … / 8hrs)
Voice prompt
VOX (voice activated transmission)
50 CTCSS tone / 104 DCS code / nonstandard tone available
Tail tone elimination
Battery saving
Width / Narrow band selection
SOS call notice
PC programming
Item number | BF-T1 |
General | |
Frequency Range | UHF: 400-470MHZ |
Channel No. | 20 |
Frequency Stability | ±2.5ppm |
Step Frequency | 12.5 / 25Kz |
Antenna Impedance | 50Ω |
Operating Voltage | DC 3.7V |
Work Temperature | -20C to +60C |
Battery Capacity | H-1500mAH (Li-ion battery) |
Battery Lift | About 12 Hours |
Dimension(W x H x D) | 108 x 55 x 21 mm (including antenna) |
Weight | 120g(including battery, antenna) |
Transmitter | |
Output power | 0.5W / 1W |
Modulation Mode | 16kΦF3E / 11kΦF3E |
Maximum deviation | <5kHz(Wide) / <2.5kHz(Narrow) |
Spurious Radiation | <7.5μW |
Adjacent Ch. power | ≤-65dB(Wide) / ≤-60dB(Narrow) |
Audio Distortion | < 5% |
SNR | ≥ -45dB / ≥ -40dB |
CTCSS/DCS Frequency deviation (W/N Band) | 0.7±0.1kHz(Wide) / 0.4±0.1kHz(Narrow) |
Intermediation sensitivity | 8-12mV |
Transmitting Current | ≤ 1000mA |
Receiver | |
Audio Distortion | 5% |
Receiving current | ≤ 380m A |
Package 1
1 x BAOFENG BF-T1 UHF 400-470mhz mini walkie talkie
1 x 3.7V 1500mah Li-ion Battery Pack
1 x Belt Clip
1 x ENG Manual
1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
1 x PTT Earpiece for free

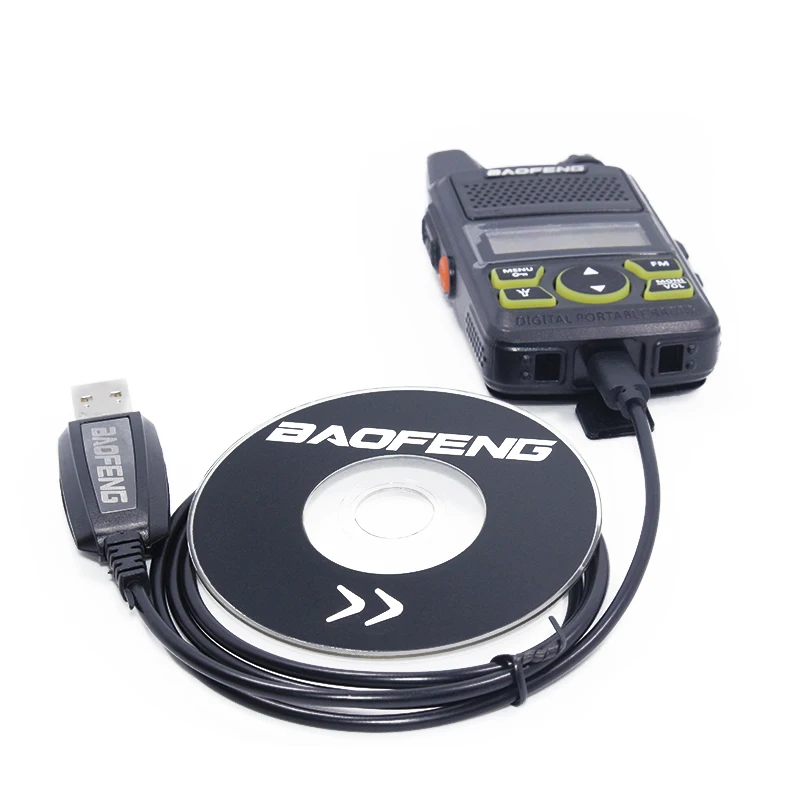

1 x Cable
Package 2
1 x BAOFENG BF-T1 UHF 400-470mhz mini walkie talkie
1 x 3.7V 1500mah Li-ion Battery Pack
1 x Belt Clip
1 x ENG Manual
1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia
1 x PTT Earpiece for free
Package 3
1 x BAOFENG BF-T1 UHF 400-470mhz mini walkie talkie
1 x 3.7V 1500mah Li-ion Battery Pack
1 x Belt Clip
1 x ENG Manual
1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia
1 x Acoustic headset
Note: This radio is only one!!!
