Baofeng UV-5R 3800mAh Battery Walkie Talkie Dual Band Handheld Two Way Radio

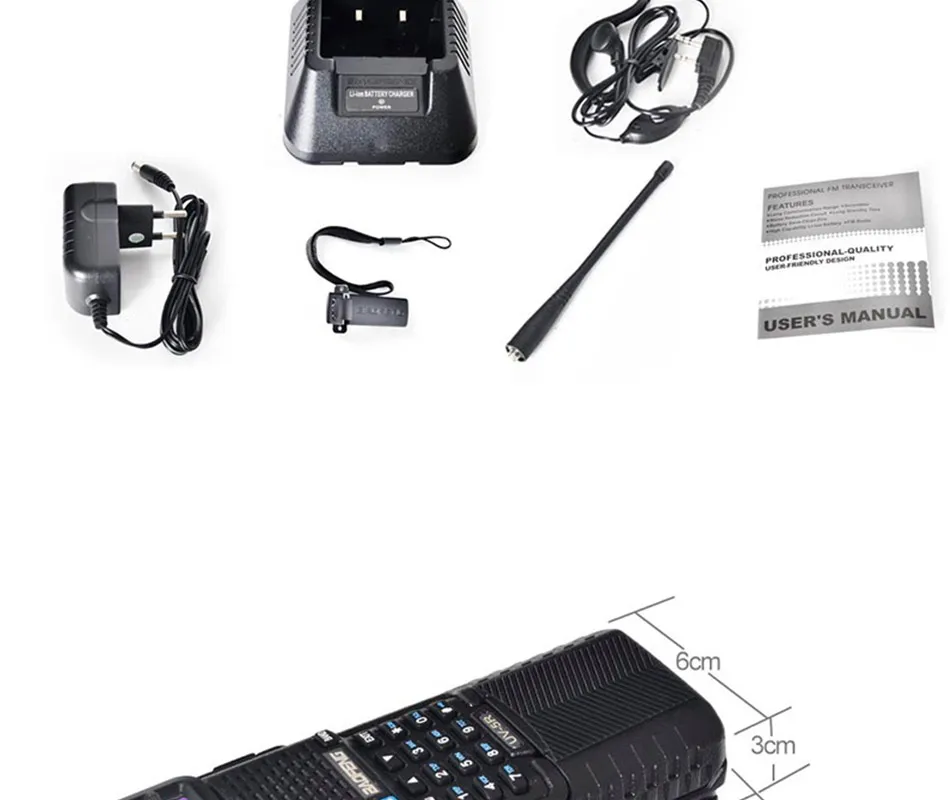

| Standard configuration: a host, a antenna, 3800 mAh battery, a set of chargers, a belt clip, a hand lanyard, a manual, a box. | |
| PACKAGE of units: | |
| 1 x UV-5R (VHF136-174 & UHF 400-520Mhz) | |

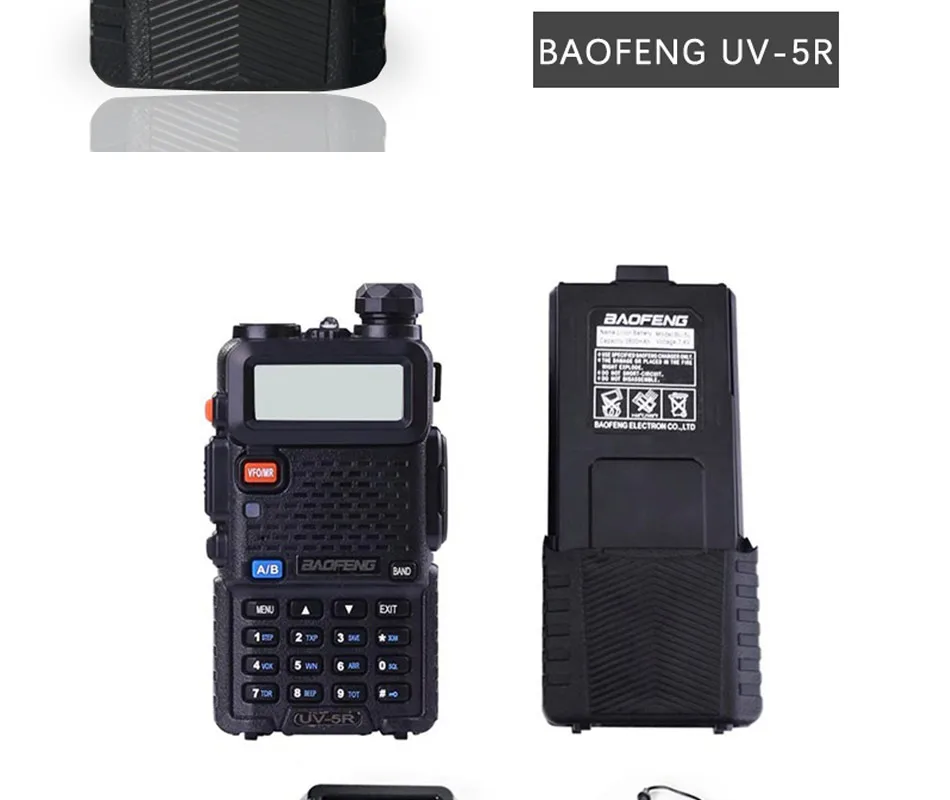

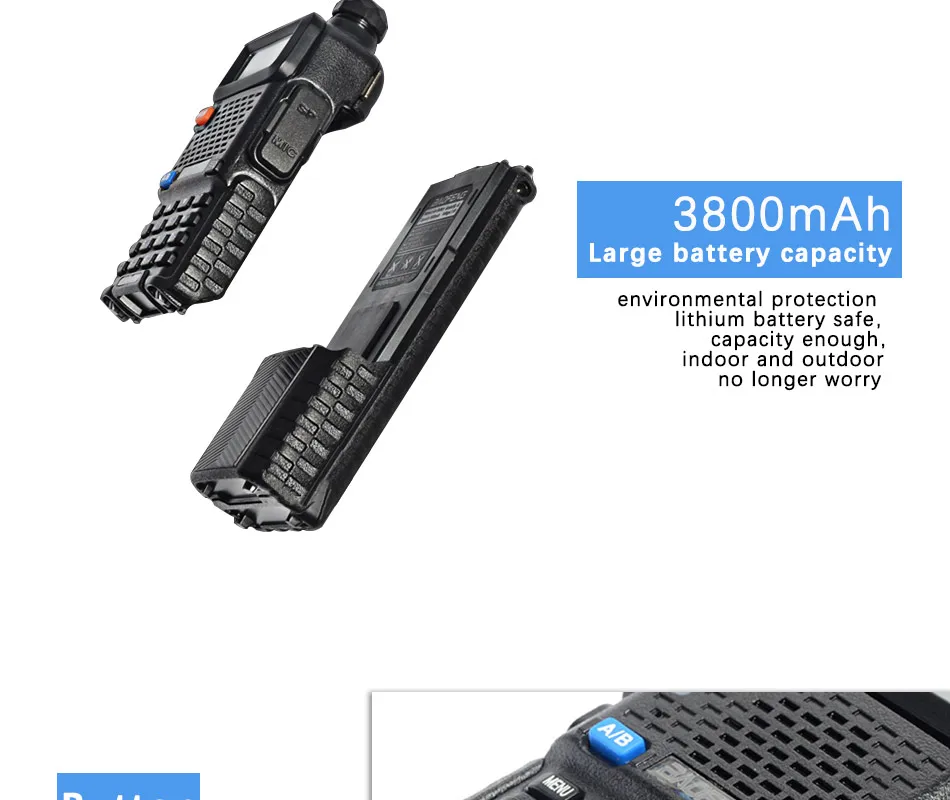

| 1 x 7.4V 3800mah Li-ion Battery Pack | |
| 1 x Dual band Antenna | |
| 1 x Belt Clip | |
| 1 x Ear hook earphone | |
| 1 x English and Russian User Manual | |
| 1x Desktop Charger ( 100V ~ 240V ) | |
| Features/Functions: | |

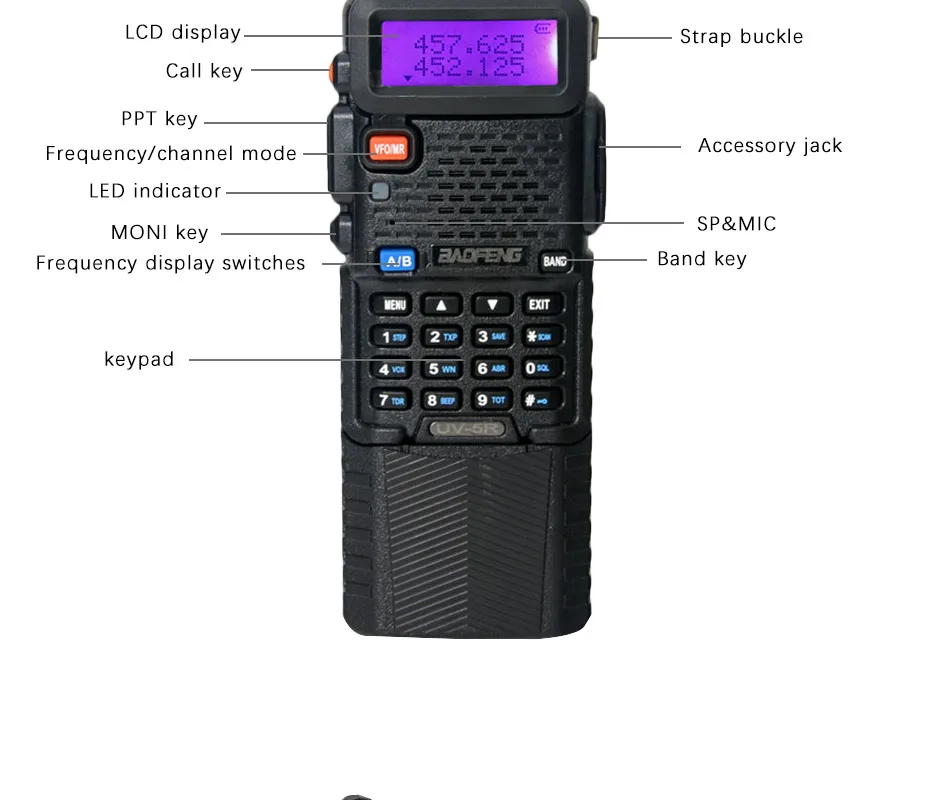

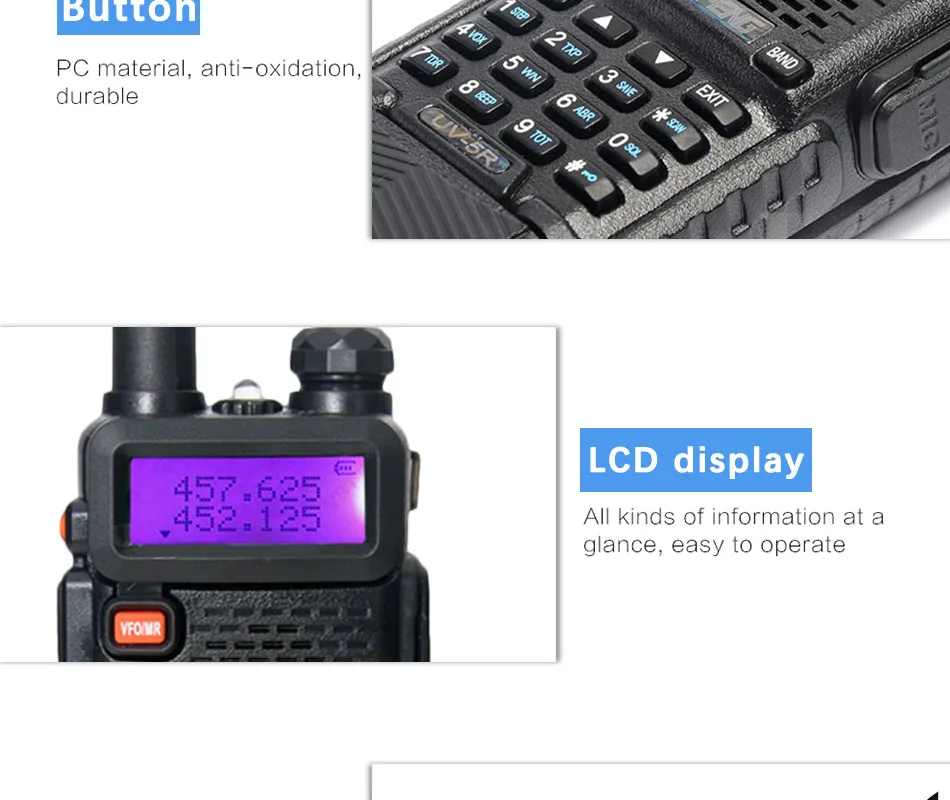

| Dual-band handheld transceiver with display function menu on the display LED | |
| Commercial FM radio receiver (65MHz-108MHz) | |
| Built-in LED flashlight | |
| DTMF encoded | |
| Built-in RX CTCSS/DCS scan | |
| Function VOX | |
| Alarm function | |
| Broadband/narrowband selectable | |
| Function beep on the keyboard | |
| Dual Watch/dual Reception | |
| Crossband reception/transmission | |
| Function OFFSET | |
| Tone end of transmission | |
| Battery saving function SAVE | |
| Programmable by PC | |
| Built-in key lock | |
| GENERAL | |
| Frequency range |
65-108Mhz(only for FM) VHF:136-174Mhz(Rx/Tx) UHF:400-520(Rx/Tx) |
| Memory channels | Up to 128 channels |
| Frequency stability | 2.5ppm |
| Frequency step | 2.5kHz/5kHz/6.25kHz/10kHz/12.5kHz/25kHz |
| Antenna impedance | 50 |
| Operating temperature | -4οF to +140οF |
| Supply voltage | Rechargeable Lithium-Ion mAh7.4V/1800 |
| Consumption in standby | ≤75mA |
| Consumption in reception | 380mA |
| Consumption in transmission | ≤1.4A |
| Mode of operation | Simplex or semi-duplex |
| Duty cycle | 03/03/54 min.(Rx/Tx/Standby) |

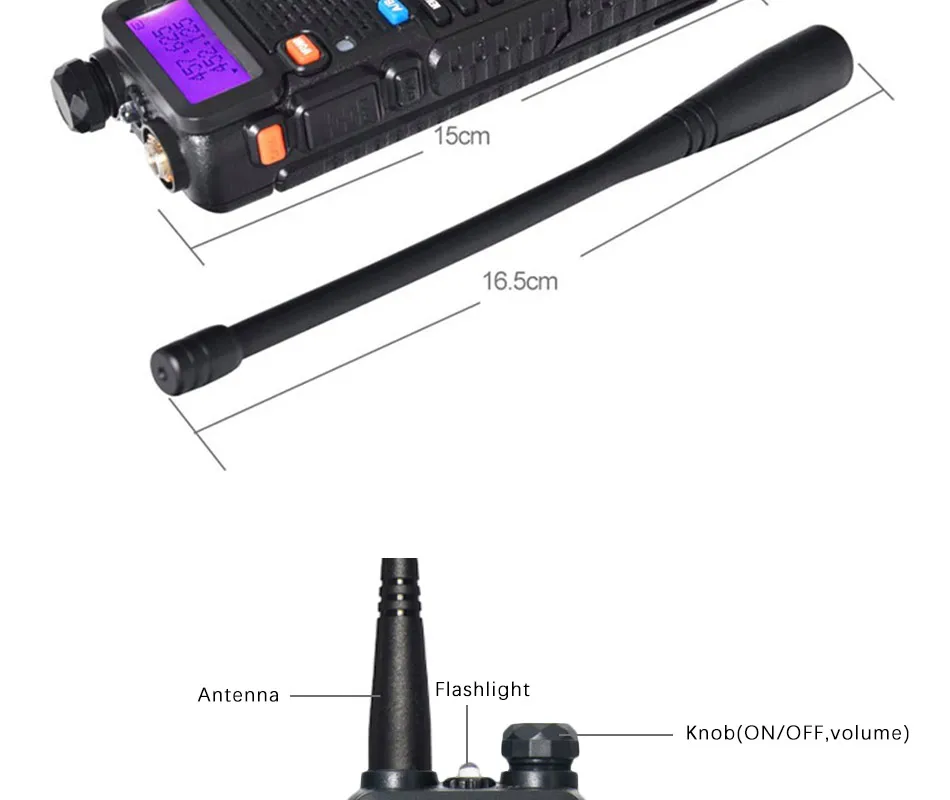

| Dimensions | 58mm*110mm*32mm |
| Weight | 130g(approximate) |
| TRANSMITTER | |
| RF power | 4W/1W |
| Type of modulation | FM |
| Emission class | 16K F3E/11K F3E(W/N) |
| Maximum deviation | ≤±5kHz/≤±2.5kHz(W/N) |
| Spurious emissions | <-60dB |
| RECEIVER | |
| Receiver sensitivity | 0.2V(at 12dB SINAD) |
| Intermodulation | 60dB |
| Audio output | 1000mW |
| Adjacent channel selectivity | 65/60dB |
| Note:All specification shown are subject to change without notice | |
| Note: |
| 1. Using rechargeable walkie-talkie for the first time, please charge for 16 hours. |
| 2. Turn off your computer before removing the battery. |
| 3. Please do not use hand to pick up the antenna, hold the antenna will affect the effective wireless intercom call range. |
| 4. Use the walkie/talkie, you should keep it vertical distance of 5.0 to 7.0cm, and keep your face. |
| 5. Please try to use while driving handsfree speaker and the closing words. |
| 6. Keep your intercom televisions, computer monitors and other screen to maintain a distance greater than 10cm, to avoid being magnetized. |
| 7. The interphone Do things together with other metal-containing Storage. |
| 8. Walkie-talkies may interfere with some hearing aids, with your hearing aid manufacturer to discuss alternatives. |
| 9. Try to place in the medical walkie-talkie off, so as not to affect the use of medical equipment. |
| 10. Do not use in airports and on aircraft. If so, prohibited driving the car to the side of the road and then. |
| 11. In potentially explosive areas must remain shut down, unless it is dedicated intercom dangerous areas (for example, Factory Mutual, CAS, or UL certified). |
| 12. To avoid electromagnetic interference/compatibility conflicts, in some cases posted notices require you to turn off the intercom, please observe. |
