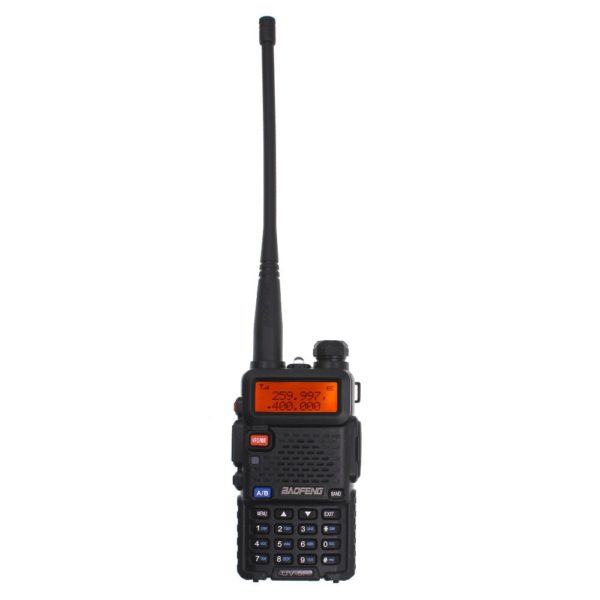

Baofeng UV-5R Tri-band Amateur Two Way Radio 136-174MHz 220-260MHz 400-520MHz


& Free Shipping
Guaranteed Safe Checkout
Sold By: Two Way Radio
  • Brand Name: BAOFENG
  • Battery Capacity(mAh): 1800mAh
  • Is_Display: Yes
  • Waterproof / Water-Resistant: No
  • Walkie Talkie Type: Portable
  • Maximum Range: 5km-10km
  • Output Power(w): 3w-5w
  • Model Number: UV-5R-3B
  • Frequency Range: 136-174MHz 220-260MHz 400-520MHz
  • Dimensions: 58x32x110mm(Not Antenna)
  • Storage Channel: 128
  • Material: Plastic

Baofeng New UV-5R Tri-band 136-174MHz 220-260MHz 400-520MHz  Amateur radio Dual display Upgraded UV 5R Two way radio BF-R3

Main features:

*Frequency range in 136-174/220-260(maixmum259.975MHz)/400-520MHz

*Antenna 136-174MHz &400-520MHz( please notice)

*Software same as UV-5R Dual band( please notice)

Tri-band Dual-display dual standby

FM radio 65-108MHz and 25 stations storage

VFO & Memory channels

Time-out Timer (TOT)


Voice companding

High/Low TX power selectable

DTMF function

Shortcut menu operation mode

Emergency Alarm

0~9 grades VOX selectable

Busy channel lock-out(BCLO)

OFF SET function

Scanning function

Monitor function

Channel name display and editing

Signal strength indicator

Keypad lock function

Built-in Led torch

Low battery alarm

Power saving function


English voice prompt

PC software programmable

50 CTCSS/104 DCS


Basic Specification
Frequency (TX& RX) 136-174MHz 220-260MHz 400-520MHz
Channel 128
Rated Voltage 7.4V DC±10%
Output power ≤ 5W /1W
Battery type Li-ion battery
Battery capacity 1800mAh
Working temperature -20~+50°C
Antenna Impedance 50Ω
Weight 255g
Dimension(L×W×H) 58×32×110mm (Not Antenna)
Channel Step 2.5/5/6.25/10/12.5/25KHz
Frequency stability ±2.5ppm
Carrier wave tolerance 5ppm
Modulation 16kΦF3E / 11kΦF3E
Max frequency deviation < 5kHz(Wide)
< 2.5kHz(Narrow)
Emission current < 1.6A(5W)
CTCSS / DCS 0.5±0.1kHz(Wide)
Sensitivity < 0.16μV(12dB SINAD)
Silent sensitivity < 0.2μV
Intermediation Distortion <10%
Inter modulation 8-12mv
Adjacent channel selectivity( wide/narrow) <-65dB(Wide) <-60dB(Narro

UV-5R (4)UV-5R (3)UV-5R (11)UV-5RX3_09UV-5R (2)

Standard package:

1 x Portable radio

1x High Gain Antenna

1 x Li-ion battery

1 x Desktop Charger  ( 100V ~ 240V )

1 x Belt clip

1 x Hand strap

1 x ear hock Earpiece

1 x english manual

1 x PTT earpiece


Weight 1 kg
Dimensions 200 × 200 × 100 mm

UV-5R-3 Bands
