Baojie Walkie Talkie BJ-318 25W Dual Band 136-174&400-490MHz Car FM Radio VHF UHF Mini Mobile radio
Note: if you need software, please contact us.
Main features:
Dual frequency Dual display, dual standby
Working mode selectable
Encryption function
FM radio function
Voice companding
Frequency/Channel scan function
Reverse frequency setting
Busy channel lock-out (BCL)
Time-out timer (TOT)
High/middle/low power selectable
CTCSS/DCS encoding and decoding
Wide/Narrow band selectable
Frequency Step Selectable 2.5/5/6.25/10/12.5/25/50KHz
Squelch adjustable from 0 to 9
Color back light selectable
PC software programmable
Operation for manual channel memory and delete
Automatic lock-out
DTMF signal setting
DTMF signal
PTT ID Setting
Remote monitoring
Remote stun
Remote kill /reliving
Alarm function
Group calling function
Team calling function
Selected calling function
Function key guide voice(BEEP)
SFT/Slip frequency direction
OFFSET/Slip frequency
1000Hz/1450Hz/1750Hz/2100Hz tone selecting
|
Specification |
||
|
Model |
BJ-318 |
|
|
Color |
Black |
|
|
Frequency Range |
Dual Band VHF:136-174MHz & UHF:400-490MHz |
|
|
System |
F3E(FM) |
|
|
Channel capacity |
256 |
|
|
Input voltage |
DC13.8V(±15%), negative grounding |
|
|
Output power |
H:25W, M:10W, L:5W |
|
|
Channel Spacing |
12.5KHz/25KHz |
|
|
Frequency Spacing |
2.5/5/6.25/10/12.5/15/25/50KHz |
|
|
Squelch way |
CTCSS/DCS/DTMF |
|
|
Antenna impedance |
50 ohm |
|
|
Frequency stability |
±2.5ppm * -10°C~+60°C |
|
|
Working temperature |
-20°C~+60°C(-4°F~+140°F) |
|
|
Max. Frequency deviation |
±5KHz |
|
|
Noise radiation |
<=-60dB |
|
|
Flexibility |
<=0.2Uv(12dB SINAD) |
|
|
Max. Audio output |
2W * 8 ohm 5% distortion |
|
|
Working current |
Receive |
0.3A(SQL) |
|
Transmit |
5A(Max.) |
|
|
Dimension |
105x30x106mm(WxHxD not including the outparts) |
|
|
Weight |
About 0.5kg |
|

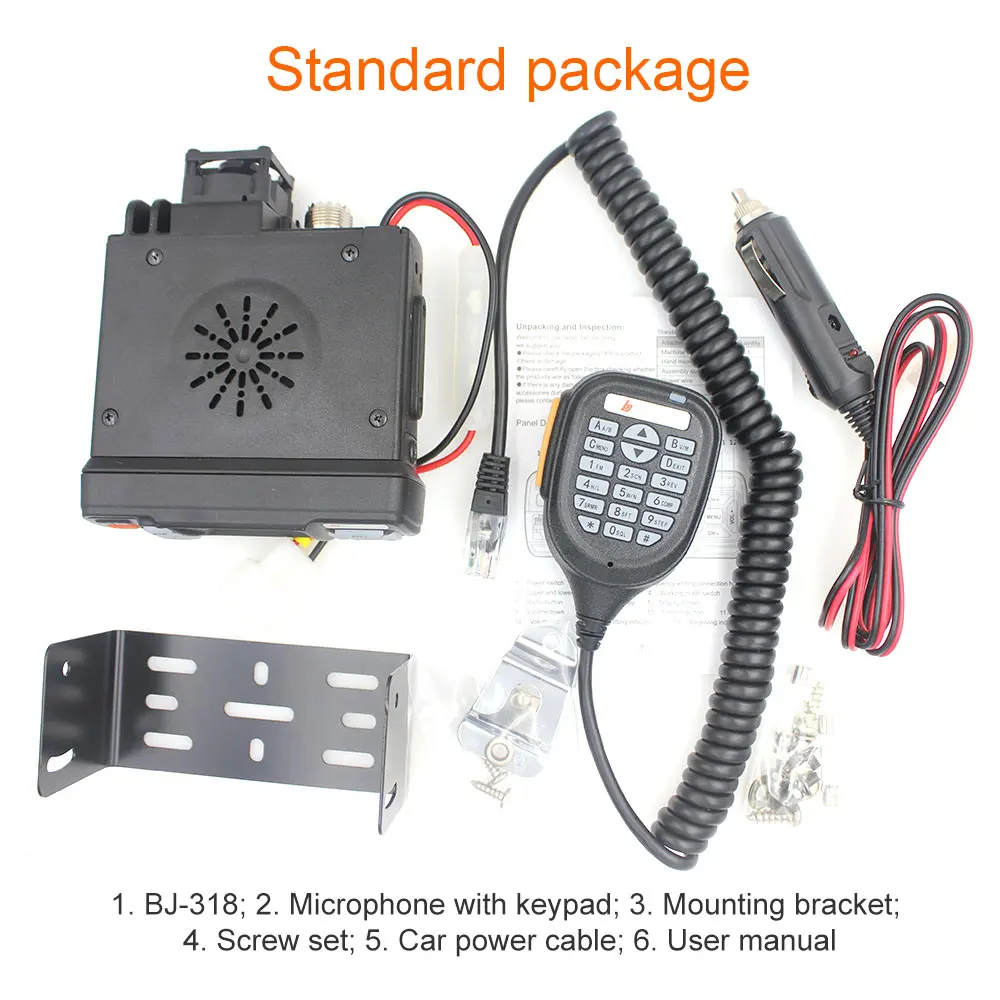

Package including:
1 x BJ-318 ( 136-174/400-490MHz ) Mini Mobile Radio Transceiver
1 x Microphone
1 x Car Power Cable

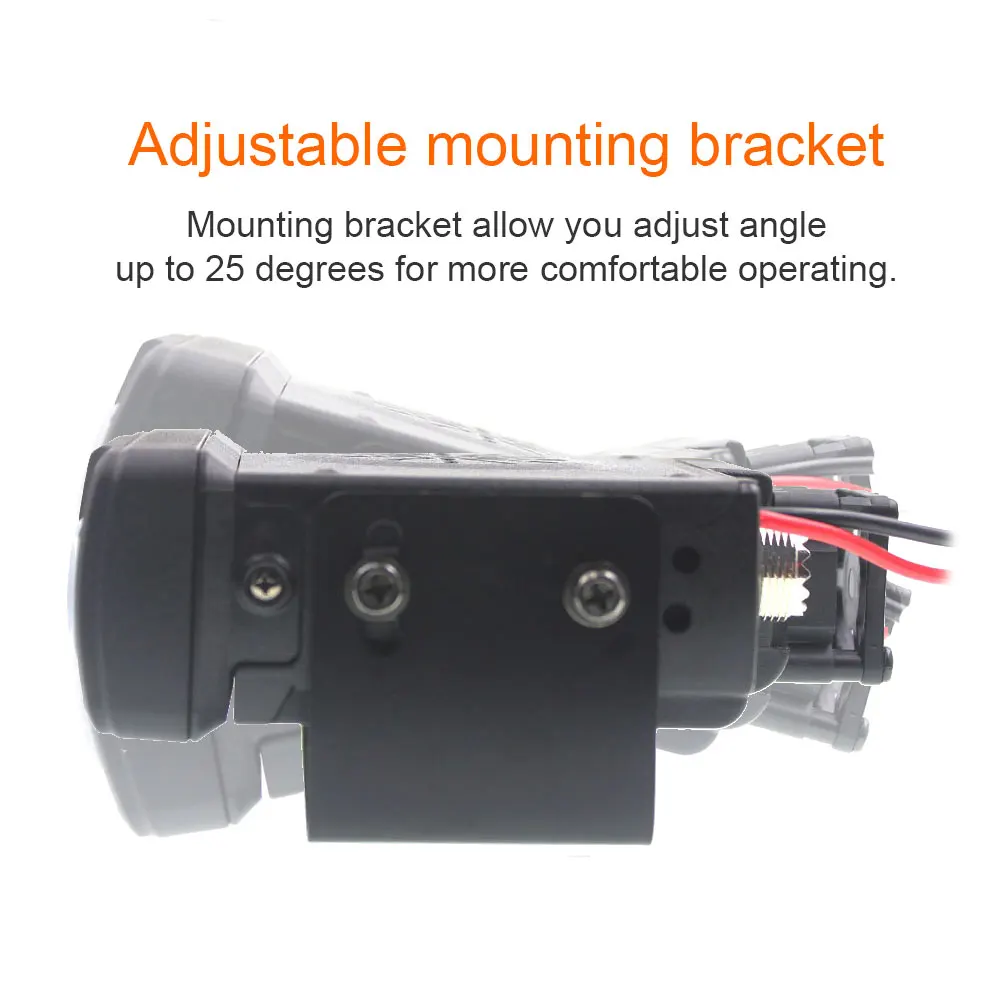

1 x Mounting Bracket
1 x Screws
1 x English User’s Manual
or 1 x USB Programming cable
