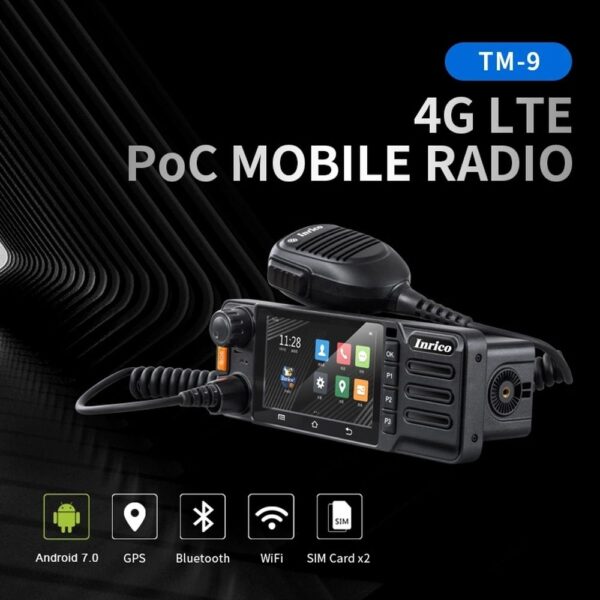

Inrico TM-9 Mobile Radio Base Radio Long Range Walkie Talkie with Clear Loudspeaker
Technical Specifications
|
Frequency
|
|
|
Model
|
TM-9
|
|
EU version
|
GSM:B2/B3/B5/B8
WCDMA:B1/B5/B8 FDD:B1/B3/B5/B7/B8/B20/B28a/B28b TDD:B38/B40/B41 |
|
US version
|
GSM:B2/B3/B5/B8
WCDMA:B2/B4/B5 FDD:B2/B3/B4/B5/B7/B8/B12/B17/B28a/B28b/B66 TDD:B38/B40 |
|
Wi-Fi
|
IEEE 802.11/b/g/n（2.4G& 5G）
|
|
Bluetooth
|
BT 4.0 + BR/EDR + BLE /BT5.0
|
|
Locations
|
GPS, AGPS
|
|
Hardware
|
|
|
CPU
|
MT6739
|
|
Memory
|
1GB（RAM）+ 8GB（ROM）
|
|
TF Card
|
Support，Micro SD/TF×1，up to 32GB
|
|
SIM card slot
|
Dual SIM card
|
|
Interface
|
Aviation headset microphone interface (without digital keyboard) / external camera (720P/1080P) / RJ-45 (optional) / DB25/GPS
external antenna interface / main antenna external interface |
|
USB Ports
|
Micro USB 2.0
|
|
Screen size
|
4.0”OLED screen, solutions:360*640RGB. MIPI1lin
|
|
Camera
|
External camera optional
|
|
Microphone
|
Dual microphone
|
|
Speaker
|
3558 Speaker 5W
|
|
Software
|
|
|
Operation System
|
Android7.1, CARPLAY
|
|
Physical
|
|
|
Dimension (H*W*D)
|
195.1×62.1×88.6mm
|
|
Weight
|
≈500g
|
|
Working Temperature
|
-20°C ~ 60°C
|
|
Storage Temperature
|
-40°C ~ 70°C
|
|
Certifications
|
|
|
Protection Level
|
IP54
|
|
Certificate
|
FCC, ce, ROHS
|
Interface & Button
Rich ports and button can give better user’s experience,
meanwhile the button function supports customized.
4 Inch Touch Screen
Epitomizing Inrico’s user friendly design concept,
TM-9 mobile radio’s 4-inch display makes key information reading much easier and concentrated.
TM-9 mobile radio’s 4-inch display makes key information reading much easier and concentrated.
DB25 Port design
With DB25 connector, it further increases the capability of external connectivity.
Not only can it attach an external camera, but it can also attach an external speaker.
Not only can it attach an external camera, but it can also attach an external speaker.
Crystal Clear Voice
The runway-shaped speaker balances well both high and low bass, bringing better audio quality.
RSM Interface
The palm mic connector, compatible with Motorola Solutions’ accessory,
provides user much flexible choice and cost reducing options. Versatile functions complemented with easy UI interface.
Product Accessories
