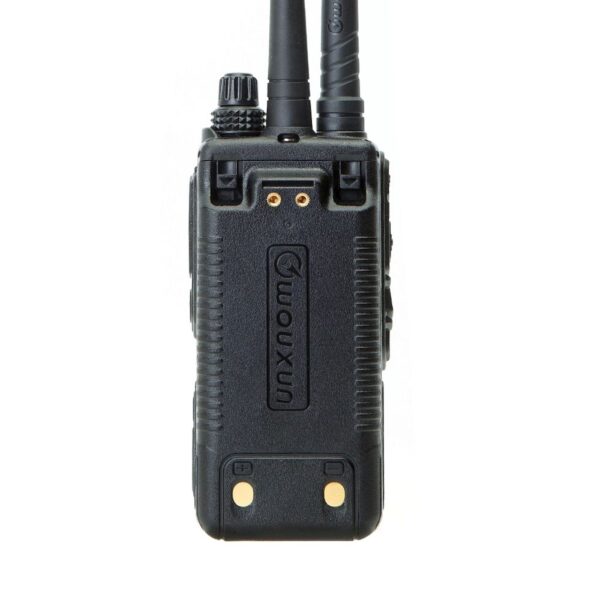

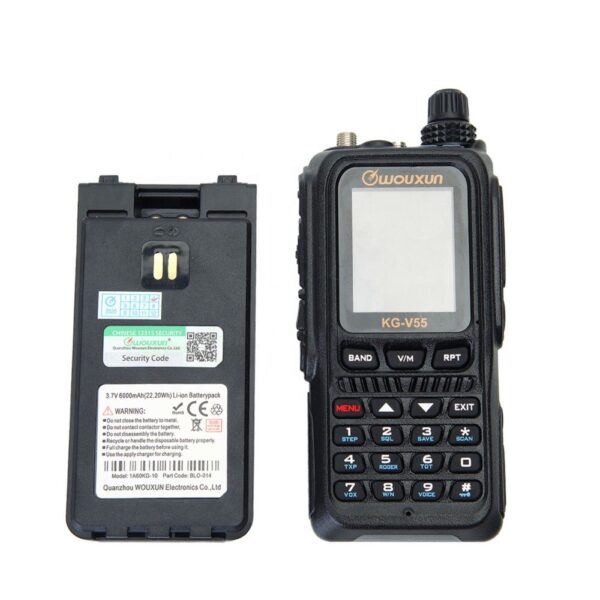

WOUXUN KG-V55 4G LTE Dual Band Analogue and Network two way radio walkie talkie
Large color screen
Public Network ,4G LTE / 3G WCDMA 2100X900MHz
Twin Modes & Tri Bands
Cross-Mode Repeat , Simcard Radio<->Analogue Radio, Analogue Radio<->Analogue Radio
Simultaneous Reception among three bands
Duplex work among three bands (one band TX, another bands RX)
200 contacts , Caller ID
Offset , Shift Frequency in Analogue Mode
UHF/VHF, VHF/UHF cross-band Repeat
VOX Function
Multi-definition for side keys
DTMF Encode and Decode
Memory Channels 999
Selective Calls, Group Calls, All Calls
SOS Emergency Alarm
Lamp , Backlight , stopwatch
Talk-Around
| General |
| Audio Power |
≤500mW |
| Operating Temperature |
-20℃～+40℃ |
| Voltage |
3.7VDC |
| Weight |
300 g |
| Size |
136 x 59 x 34 MM |
| Public Network (RealPTT network only) |
|
| Work Band |
4G LTE |
| Work Band |
WCDMA 2100X900MHz |
| Max TX Power |
23~25dbm @AII up bits |
| RX Sensitivity |
-106dbm |
| Analogue |
| Frequency Range |
Suitable for different countries or areas
136-174 & 400-470MHz (RX/TX)
76-108MHz (FM , RX , Setp 100K) |
| Setp |
5K/6.25K/12.5K/25K/50K/100K |
| Memory Channels |
999 |
| Mode |
F2D/F3E |
| Antenna Impedance |
50Ω |
|
|
| Analogue Transmitter |
|
Wide |
Narrow |
| Adjacent Channel Selectivity |
≤ 70dB |
≤ 60dB |
| Inter-Modulation |
≤ 65dB |
≤ 65dB |
| Spurious Response |
≤ 70dB |
≤ 70dB |
| Audio Response |
+1~-3dB(0.3~3KHz) |
+1~-3dB(0.3~3KHz) |
| Squelch Sensitivity |
≥45dB |
≥40dB |
| Audio Distortion |
≤5% |
| Output Power |
UHF 2.5W , VHF 3.0W |
|
|
| Analogue Receiver |
|
Wide |
Narrow |
| Modulation |
16K F3E |
11K F3E |
| Effective Radiation Power |
≥70dB |
≥60dB |
| Spurious Response |
≥60dB |
≥60dB |
| Audio Response |
+1~-3dB(0.3~3KHz) |
+1~-3dB(0.3~3KHz) |
| Max Offset |
±5KHZ |
±2.5KHZ |
| Frequency Stability |
±2.5PPM |
| Audio Distortion |
≤5% |
| Sensitivity |
UHF : 0.25uV(12dB SINAD)
VHF : 0.25uV(12dB SINAD) |
|
|
|
4G LTE /3G radios work with Model1 or Model 2 (depond on your country).
Model : 1 GSM850/ 1900/ UTMS2100MHz
Model : 2 GSM900/ 1800/ UTMS2100MHz
SIM Card required to offer Data talke worldwide, no Distance limit.
.3G Radio cost data flow, Usually 2.88M/H for continnue talk and 0.06M/day standby mode for reference.
Package include:
1x WOUXUN KG-V55 4G EU Version Dual Band Analogue and Network two way radio walkie talkie
1x V/U Antenna
1x WCDMA Antenna
1x Battery
1x Charger with PSU
1x English Manual |
