Biggest Power 20W Handheld Radios Leixen Note 4000mAh UHF Walkie Talkie
Main function/ Features:
CN/EN Voice prompt
PC Programming/Wireless Cloning Function
Alarm Function between the Units
16 channels
Output power:5W/10W/25W
Frequency: UHF 400-480MHz
Max Output power:25W
16 channels
CTSS/DCS
Auto battery saving function
Military and civilian walkie talkie suitable for Hotels Construction
urban district talk range 10KM
4000mAh Li-ion Battery
Comes with cooling fan
Antenna length 37CM flexible high-gain antenna!
Maximum deviation: <+ 5KHz
Clutter Radiation: 60dB
Emission current: 3.5A
Frequency stability: + 2.5PPM
Receiver sensitivity: <0.18
Modulation: F3E
Audio Power:> 400mW
Power supply voltage: 12.6V

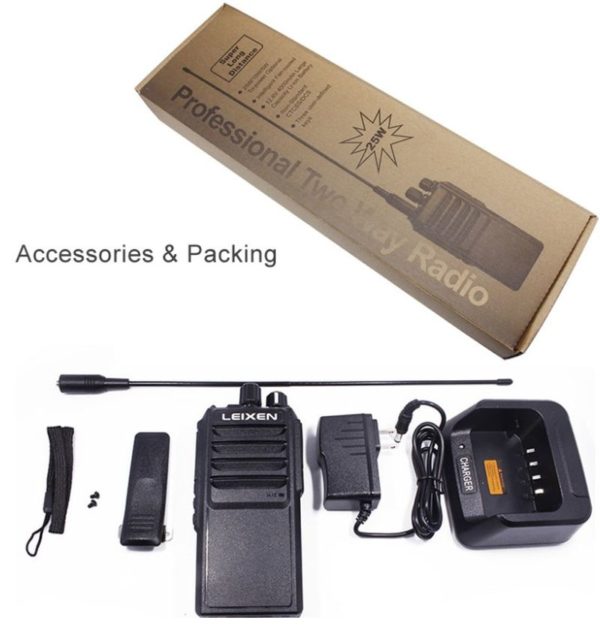

Each set Packing contain:
– UHF400-480MHz 25W transceiver
– 12.6V 4A (4000mAh) Lithium Battery
– Battery Charger with 110-220VAC wall adapter
– 38cm Soft UHF400-480MHz Antenna
– Heavy Duty Belt Clip
– Carry Strap
– 8 page English User Guide
Size / Weight
Weight: 550g (19.2 oz) with battery
574g (20.4 oz) with battery and antenna
Size: 170(H) x 77 (W) x 42 (D) mm (6.7 x 3.0 x 1.6″)
The NOTE is definitely larger than the average handheld.
Enclosure & Keys
The case is solid, and as expected, larger than the average handheld. There are 3 programmable keys (Two on the side, one on top) that can be configured with any 6 of the 7 possible functions, which includes Scan, Scan Add, TX Power, VOX, Fan. Moni Lock, SQL Momentary.
The LED on the right displays the power level when transmitting. Blue=Low Violet=Mid Red=High. The radio is terminated with a standard SMA-M connector, requiring an antenna with an SMA-F connector.
Transmitter
The NOTE is conservatively advertised at 20W, but specifications show 25W on high power, and holds true to those estimates.
Running the radio at high power into a Bird Wattmeter for 3 minutes showed no decrease in power. There’s a small thermally connected cooling fan inside the NOTE’s case. On high power, the fan turned on after about a minute, It’s very quiet and does keep the radio at a respectable temperature level. The fan is properly vented an pulls the warm air from inside the radio, not just the heat sink. There’s a software option to disable the fan, but my recommendation is to leave the option turned on.
|
Antenna
The included antenna measures 15″ in length and is specifically built and rated to handle 25W, where traditional antennas are rated at approx 10W.
As a word of caution, I would very careful using an antenna other than the one supplied unless running a mobile antenna rated at 25W or more.. There may be a temptation to use a smaller antenna, but I can almost guarantee you will damage the radio and the antenna on the high power position.
|
Mobile Operation
For mobile operation, when using an outside antenna, I strongly recommend an SMA-M to BNC adapter that sits flat against the radio. This will put much less strain on the radios connector.
A standard Kenwood or Baofeng 2 pin style Spkr/Micr is also compatible with this radio.
Receiver
The radio has 16 channel capability with a range of 400-480MHz. The receiver sensitivity is on par with any mobile I’ve used in the past and there’s plenty of smooth, clear and loud audio.
Battery
The NOTE has a slide-on 12.6V 4000mAh battery. This is not your conventional 7.4 volt battery found in most handhelds. On High Power (25W) this handheld can draw as much a 3500 mAh and this battery handles it quite nicely.
Programming Cable and Software
The software for the NOTE is fairly basic and easy to understand. .The programming cable required is the standard Kenwood / Baofeng style cable. My recommendation is to purchase a cable that utilizes an FTDI chipset, such as the PC03. It may cost a few dollars more, but it’s plug-n-play. If a generic cable is acquired, it may require a backdated driver. Those drivers can be found at Cable Driver
My recommendation is to purchase a good cable from the start.
RF Safety
RF energy at any power level should not be taken for granted.
Conclusion
A note of caution regarding the radios power. 25W is a lot of RF power. It makes for an incredible radio, but that type of power must be used responsibly. This radio is five times that of a standard handheld.
I use mine in the 5W/10W position as a handheld. On low power, the battery seems to last forever. I only use the high power 25W option when operating in my vehicle with an outside antenna.
If you are looking for a single band UHF transceiver that can be used as a base station, mobile, or handheld, the Leixen NOTE is definitely a radio to consider. The manufacturer’s intent is to eventually produce a similar VHF version.
