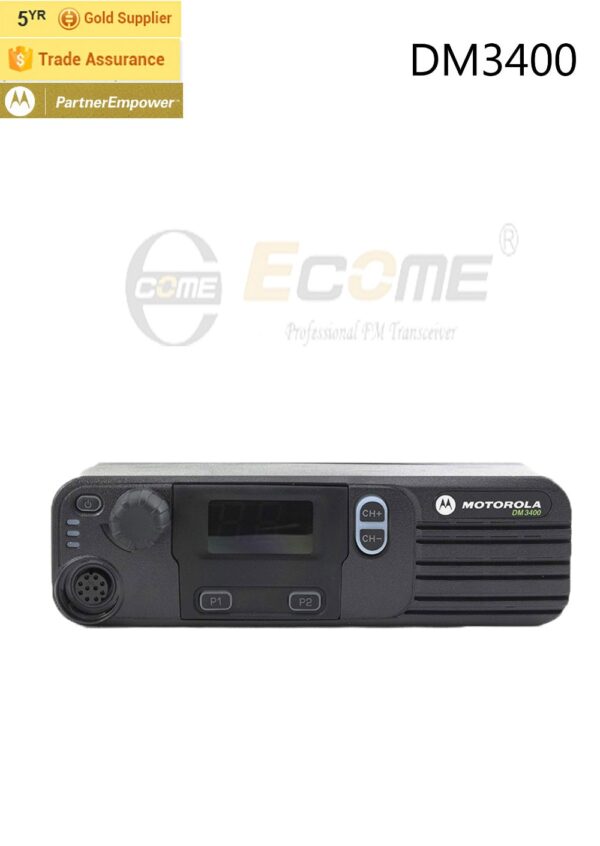

High Quality AM / FM Digital Mobile Car Radio Motorola DM3400 walikie talkie long distance radio 25w
Product description
The Motorola DM3400 offers users more value, performance, and productivity, by utilizing Time-Division Multiple-Access (TDMA) technology, allowing for twice the calling capacity per licensed channel (compared to analogue or FDMA radios). It is a cost effective solution for your business-critical communication requirements.
Product details
Features
The Benefits of Switching into DM3400 Digital Radio
The MOTOTRBO™ line was designed with practicality, so users could over time, choose to transition from analog to digital radios without incurring heavy up-front costs. By switching to digital technology you will enjoy clearer voice communications and enhanced battery life over previous models, as well as simple, but interactive, menus that will make operating and navigating the system painless.
1 ,Accessory connector supports USB andenhanced audio capability.
2, Multi-colored LED indicators for clear,visible feedback of calling, scanning and monitoring.
3 ,Large, easy-to-use volume knob.
4 ,DM 3401 includes integrated GPS module.
5 ,Large, easy-to-use channel navigationbuttons.
6 ,Powerful, front-projecting speaker.
7 ,32 channels; channel number is easy to read on large, clear numeric two-digit display.
8 ,Two programmable buttons for easy access to favourite features. New features such
as one-touch calling are made even easier through programmable button access.
9 ,Compact and ergonomically friendly microphone.

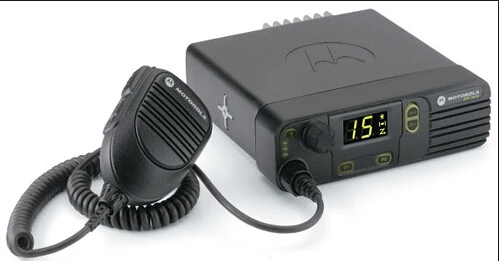

Numeric Display Mobile Radio
Standard Package
• Radio with Numeric Display Control Head
• Trunnion
• Cabling (power cord)
• Compact Microphone
• Quick Reference Guide
Additional Features
• Enhanced call management
Encode: emergency, push-to-talk ID
Decode: radio check, remote monitor, radio disable, all call
• DM 3401 can transmit GPS coordinates
• Dual-mode analogue/digital scan – facilitates a smooth migration from analogue to digital
• Send quick text messaging via programmable buttons
|
GENERAL SPECIFICATIONS |
|
|
Channel Capacity |
32 |
|
Typical RF Output |
|
|
Low Power UHF and VHF |
1-25 W |
|
High Power UHF |
25-40 W |
|
High Power VHF |
25-45 W |
|
Frequency |
136-174 MHz; 403-470 MH |
|
Dimensions (HxWxL) |
51 x 175 x 206 mm |
|
Weight |
1.8 kg |
|
Current Drain: |
|
|
Standby 0.81 A max |
0.81 A max |
|
Rx @ Rated Audio 2 A max |
2 A max |
|
Transmit |
1-25 W: 11.0A max;25-40 W: 14.5A max;25-45 W: 14.5A max |
|
RECEIVER |
|
|
Frequency |
136-174 MHz;403-470 MH |
|
Channel Spacing |
12.5 kHz/ 20/25 kHz |
|
Frequency Stability |
+/- 1.5 ppm (DM 3400) |
|
Analogue Sensitivity |
0.30 uV (12 dB SINAD);0.22 uV (typical) (12 dB SINAD); |
|
Digital Sensitivity |
5% BER: 0.3 uV |
|
Intermodulation |
70 dB |
|
Adjacent Channel Selectivity |
60 dB @ 12.5 kHz,;70 dB @ 20/25 kHz |
|
Spurious Rejection |
70 dB |
|
Rated Audio |
3 W (Internal);7.5 W (External – 8 ohms);13 W (External – 4 ohms) |
|
Audio Distortion @ Rated Audio |
3% (typical) |
|
Hum and Noise |
-40 dB @ 12.5 kHz; -45 dB @ 20/25 kHz |
|
Audio Response |
+1, -3 dB |
|
Conducted Spurious Emission |
-57 dBm |
|
TRANSMITTER |
|
|
Frequency |
136-174 MHz;403-470 MH |
|
Channel Spacing |
12.5 kHz/ 20/25 kHz |
|
Frequency Stability |
+/- 1.5 ppm (DM 3400) |
|
Power Output |
|
|
Low Power UHF and VHF |
1-25 W |
|
High Power UHF |
25-40 W |
|
High Power VHF |
25-45 W |
|
Modulation Limiting |
+/- 2.5 kHz @ 12.5 kHz |
|
+/- 4 kHz @ 20 kHz |
|
|
+/- 5.0 kHz @ 25 kHz |
|
|
FM Hum and Noise |
-40 dB @ 12.5 kHz; A41-45 dB @ 20/25 kHz |
|
Conducted / Radiated Emission |
-36 dBm < 1 GHz;-30 dBm > 1 GHz |
|
Adjacent Channel Power |
-60 dB @ 12.5 kHz;-70 dB @ 20/25 kHz |
|
Audio Response |
+1, -3 dB |
|
Audio Distortion |
3% |
|
Digital Vocoder Type |
AMBE+2 |
|
Digital Protocol |
ETSI-TS 102 361-1, 2 & 3 |
|
ENVIRONMENTAL SPECIFICATIONS |
|
|
Operating Temperature |
-30° C / +60° C |
|
Storage Temperature |
-40° C / +85° C |
|
Temperature Shock |
Per MIL-STD |
|
Humidity |
Per MIL-STD |
|
Water and Dust Intrusion |
IP54, MIL-STD |
