NAGOYA NL-770S Dual Band Antenna B-400 Antenna Mount Bracket Clip 5M Coaxial Cable Kit For Car Radio KT8900 KT-8900R BJ-218 UV-25HX
Features:
NL-770S Dual Band Antenna:
Model: NL-770S
Car two-stage antenna, UV segment universal, high-performance antenna
Frequency: 144/430
Gain: 2.15/3dB
Power: 150W
Impedance: 50Ω
Total length: 445mm
Weight: 131g
B-400 Antenna Mount :
Rubber mounting pad protects mounting surface
No holes / drilling required
Four set-screws insure mount strength for larger antennas
2-axis adjustable
Color: Silver
Weight: 315g
5M Coaxial feeder:
Cable length: 5 Meter
Connector type: PL259
Material: Copper cord
PL259 SO239 Compatibility Car radio:
for YAESU :FT-1802M ,FT-1807, FT-7900R, FT-1900R,FT-2900, FT-2800M, FT-7800R, FT-8800R,…
for Kenwood : TM-271 ,TM-471,TM-281,TM-481,TK760,TK780,TK7160,TK7180,TK7102,TK7150 TK7302U,TK7360,NX700…
for ICOM : IC-2200H,IC-2720H,F121S, F121, F5011, F5021, F5121D, F5061, F1721, F1821, F9511, V8000, V2300H,…
for Vertex: VX2100,VX2200,VX4500,…
for TYT: TH-9800,TH-7800,TH-9000
for BaoFeng: BF-9500..
for WouXun: KG-UV950P,KG-UV920P,…
for BaoJie: BJ-218…
for QYT: KT8900, KT-8900R,KT-UV980,…
And any other radio that uses PL259(SO-239 / SL16 / UHF-M) connector Antennas.
Note:
If your radio model not listed above, please see my other item or email us your model number, then, we will help you find one that suit for you
If your radio model not listed above, please see my other item or email us your model number, then, we will help you find one that suit for you
Coaxial Connector:
4 Coaxial connectors for easy use of hand-held walkie-talkie in the car.
SMA-Female Connector / SMA-M Male Connector / BNC Connector support various hand-held walkie-talkie.
SO239 Male Connector support male antenna interface of the car radio.
Note:
The product is equipped with four additional connectors to support more car radio and hand-held walkie-talkie that can reach 90%, but we can not guarantee support for all 100% of the walkie talkie, Old section and rare style walkie talkie may have no support phenomenon.
The product is equipped with four additional connectors to support more car radio and hand-held walkie-talkie that can reach 90%, but we can not guarantee support for all 100% of the walkie talkie, Old section and rare style walkie talkie may have no support phenomenon.

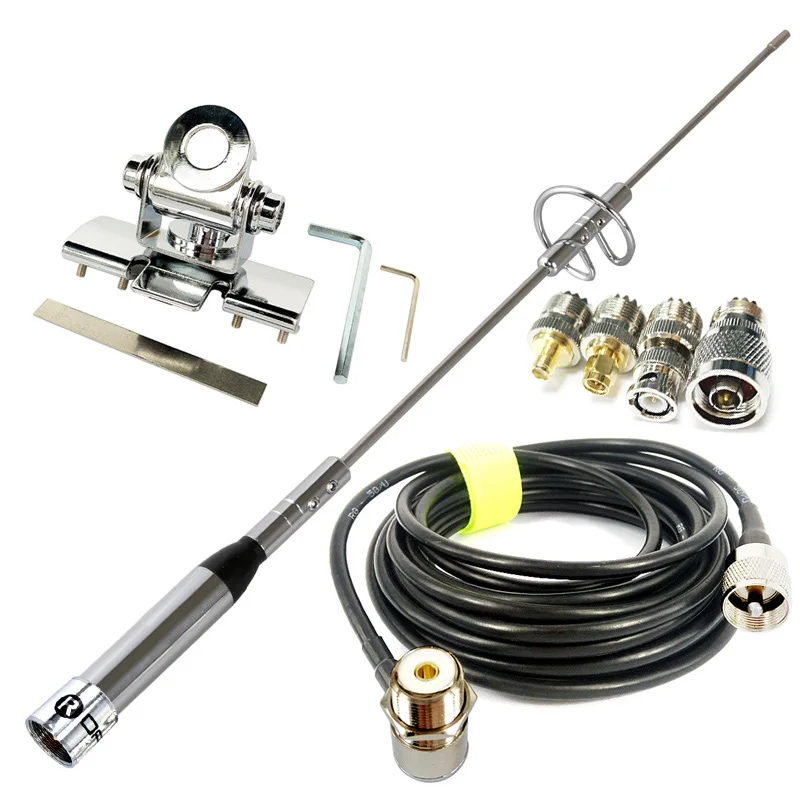

Package included:
1X NL-770S Antenna
1X B-400 Antenna Mount Bracket
1X 5 Mr Coaxial feeder
1X SMA-F Female Coaxial Connector
1X SMA-M Male Coaxial Connector
1X BNC Coaxial Connector
1X SO239 Male Coaxial Connector
