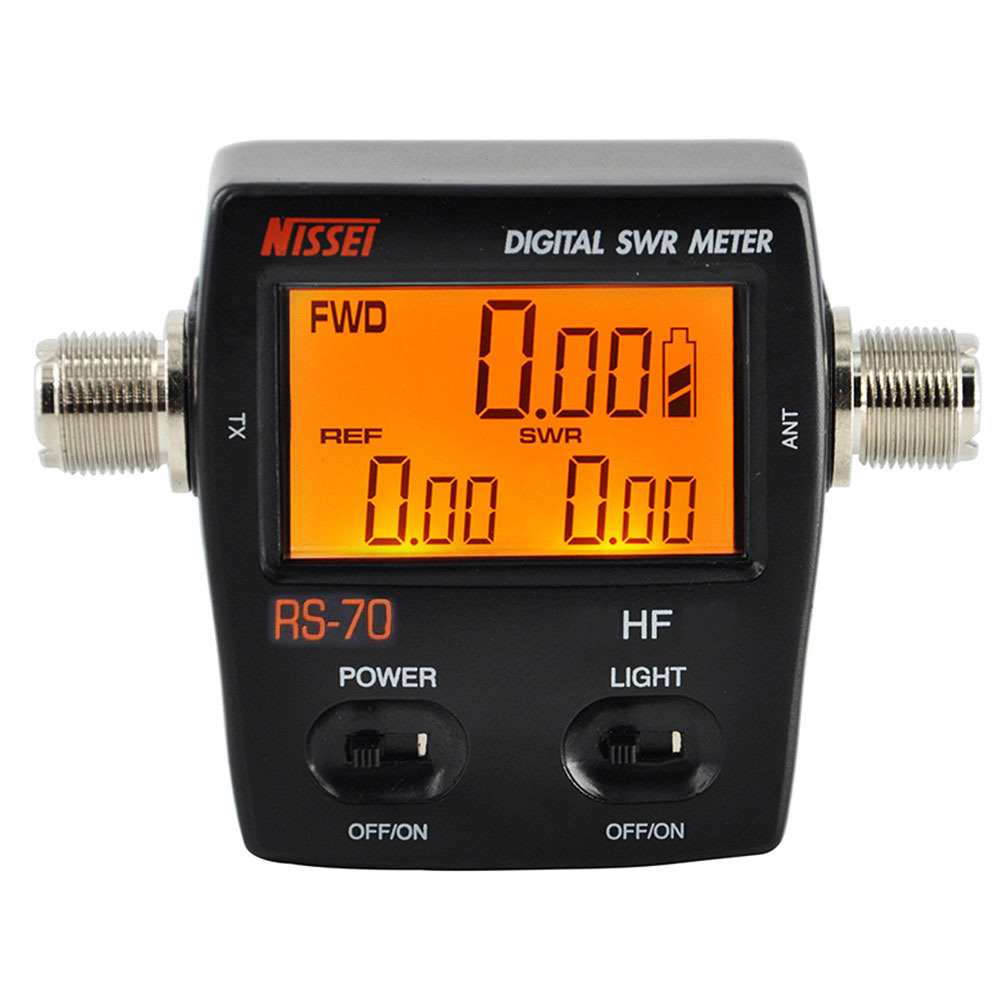

NISSEI RS-70 Digital SWR Power Counter 1.6-60MHz 200W M Type Connector
Main Features:
1.Forward/Reversed/VSWR ration in one push button.
2.LED backlit display for ease of reading.
3.Power Source: internal “AAA” batteries/external USB Port.
4.Applicable rechargeable battery.
5.Micro USB-DC5V Output (not include adapter).
6.Convenient control layout for ease operation.
Specification:
Frequency range:1.6-60MHz
Power Range: 0-200W ±5%
Testing Functions: Fwd/Rev Power,SWR
Insertion Loss: 0.3dB or Lower
Impedance: 50Ω
Power Source: Battery”AAA” or Micro USB Port
Connector: SO239 M Type
Dimension: 70W78H30Dmm
Net Weight: 220g (no batteries)
Measurement:
1.Apply output of transceiver to “TX” and antenna or load to “ANT”.
2.”POWER” on for ready to use.
3.LCD display show simultaneously “Fwd/Rev Power and SWR”.
4.For back=light,please switch”LIGHT” to “ON”.
No function in 30 seconds,The backlit will automatically off.
Once PTT launched, the backlit will be back.
Battery Installation:
1.Remove the black screw from the cover to opern the rear panel.
2.Install 2pcs “AAA” batteries.
3.Can be used with alkaline or Ni-ca,Ni-MH rechargeable battery.
4.This unit has no built-in charging circuitry.
5.Be sure to correct polarity of battery.
6.Remove the battery if the unit won’t be used in long period.
Noted:
1.Can be used both alkaline battery (1.5V) or rechargeable battery (1.2V)
2.This unit has no built-in charging circuitry.
3.Be sure to switch off both “Power” & “Light” after use for saving battery power.

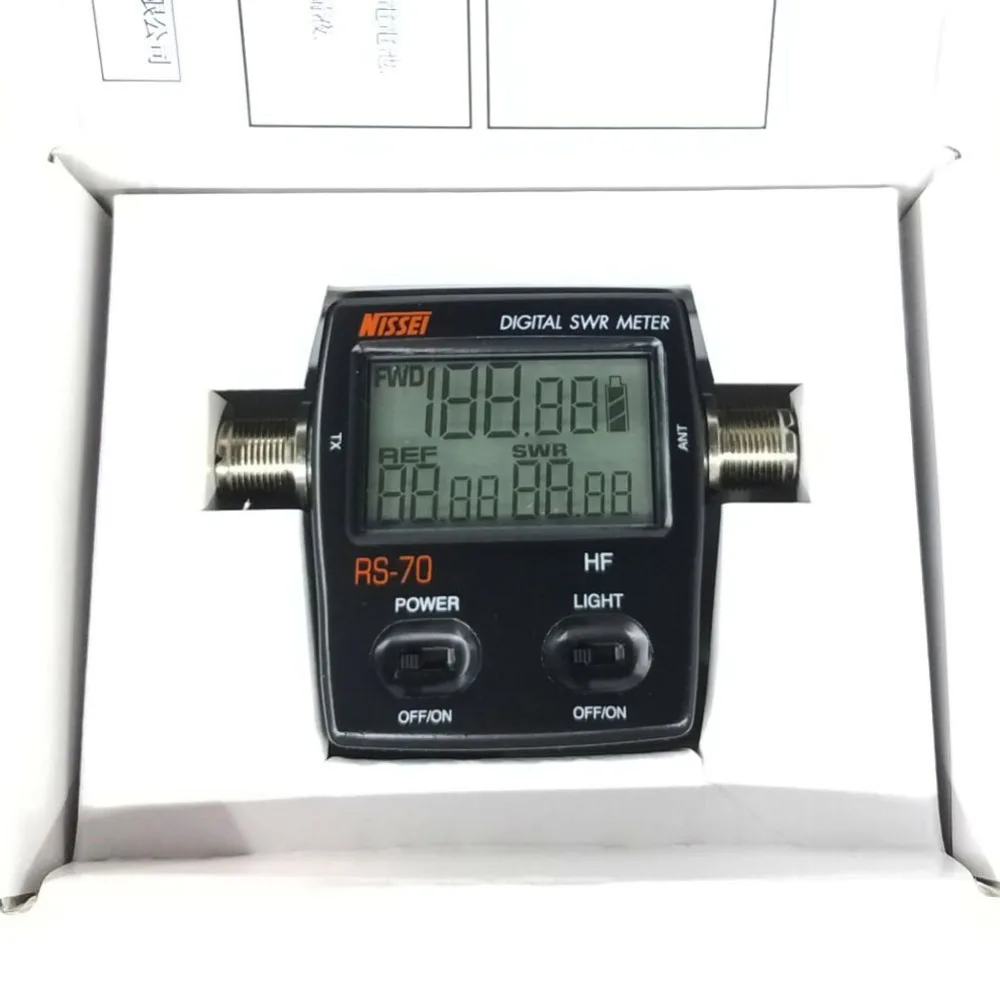

Each Set Package Contain:
-1× NISSEI RS-70 Digital SWR/Power Meter
-1× User’s Manual
