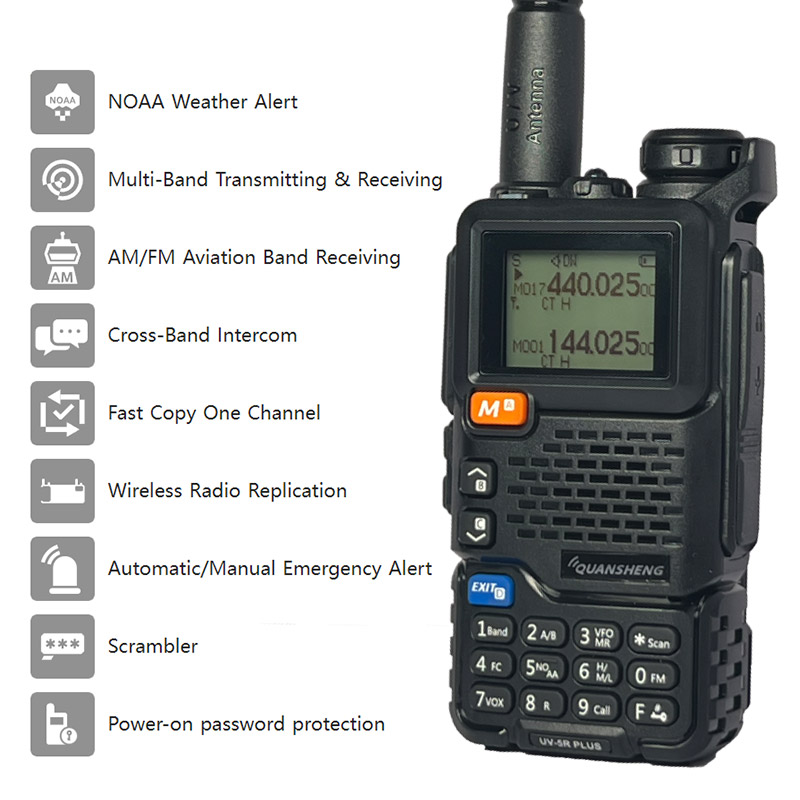

Quansheng UV-5R Plus Walkie Talkie 5W Air Band Radio Charge UHF VHF DTMF FM Scrambler NOAA Wireless Frequency Two Way Radio
Quansheng UV-5R Plus features 200 memory channels, a large 2,000mAh battery, and a full 5W of RF power.
A modern screen makes things easy to read, and Chirp compatibility means it’s easy to program.
With all the features the average ham needs like repeater tones, offsets, and DTMF this basic radio is perfect for everyday use. Did we mention its also easy on the pocket book!
IC / ISED: 30518-UVK5
| GENERAL SPECIFICATIONS | |
| Number of channels | 200 |
| Number of FM Presets | 16 |
| Frequency stability | ±1ppm |
| Size | 115mmX60mmX37.5mm |
| Weight | 234g |
| Working temperature | -20℃+60℃ |
| Antenna impedance | 50Ω |
| Modulation mode | FM:11KOF3E(12.5KHz),16K0F3E(25KHz) |
| Number of NOAA channels | 10 |
| Battery capacity | 2000mAh |
| RECEIVE | |
| Reference Sensitivity | FM(12dB SINAD) F1(50∽76) -121dBm F2(108∽135.9975) -121dBm F3(136∽173.9975) -123dBm F4(174∽349.9975) -123dBm F5(350∽399.9975) -123dBm F6(400∽469.9975) -123dBm F6(470∽599.9975) -121dBm
WFM(20dB SINAD) WFM(76∽108) -110dBm AM(10dB S/N) F2(108∽135.9975) -113dBm |
| Audio Power | ≥0.5W |
| Audio Distortion | ≤10% |
| Transmit | |
| Frequency Band | 144∽148MHz
430∽450MHz |
| Transmitting Power | ≤5W |
| Emission Current | ≤1.5A |
| Maximum Frequency Deviation | ≤5KHz(25KHz), ≤2.5KHz(12.5KHz) |
| Modulation Distortion | ≤5% |
| Stray Power | ≤7.5uW |
| Adjacent Channel Power | 70dB(25KHz), 60dB(12.5KHz) |
| Residual Modulation | 40dB |
Box Contents:
- UV-5R Plus Radio
- Dual Band FM antenna
- Battery
- 110V AC Charger (Fixed Cord)
- Belt Clip
- Wrist Strap
PLEASE NOTE: This radio does not have Cross Band Repeater capabilities. The translation to Cross Band Intercom indicates if a signal comes in on Band A and you are on Band B, the radio will switch to Band A for your next transmission.
