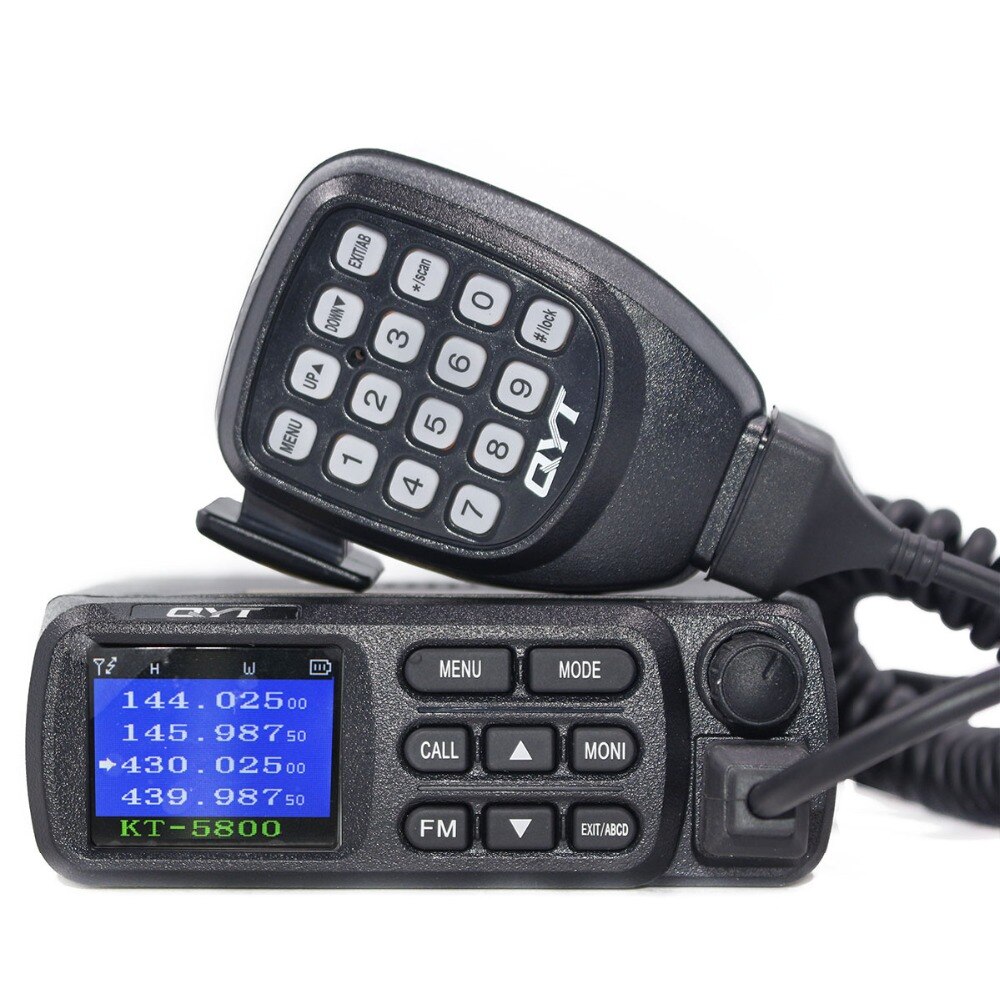

QYT KT-5800 Mobile Radio 12/24V Truck Mini Walkie Talkie Quad Display 25W Dual Band UHF VHF Car Radio
The QTY KT-5800 is 12/24V, So you can connect to the TRUCK/CAR directly without additional transformerÂ
QYT KT-5800 12/24V Dual Band Quad-Standby Color Screen 25W VHF UHF Mini Car Ham Radio Mobile Transceiver Truck
Features:
12/24V, Can connect to the TRUCK/CAR directly without additional transformer
Dual Band,Quad-standby
25W Output Power
External speaker/PTT
Mini Size
PC Program
Remote Stun,Remote Activate,Remote Kill
DTMF Function, 2 tone, 5 tone
PTT-ID Code
Repeater Function
Long-distance Communication
FM Radio
Alarm Function
Monitor
Specifications:
| Item number | KT-5800 |
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â General | |
| Frequency Range | VHF:136-174MHz   UHF:400-470MHz |
| Number of Channel | 200 |
| Channel Spacing | 25KHz 20KHz 12.5KHz |
| Phase lock step | 5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 15 KHz, 25 KHz |
| Working Voltage | 13.8V DC or 24V DC |
| Squelch way | CTCSS/DCS/5Tone/2Tone/DTMF |
| Frequency Stability | ±2.5ppm |
| Operating Temperature | -20c~+60c |
| Dimension(W x H x D) | 123(W) x 44(H) x 158(D)mm |
| Weight | 1.2KG |
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Receiver | ||
| Â | Broadband | Narrow band |
| Sensitivity | ≤ 0.25μV | ≤ 0.35μV |
| Channel choice | ≥70dB | ≥60dB |
| Intermodulation | ≥65dB | ≥60dB |
| Spurious Rejection | ≥70dB | ≥70dB |
| Audio response | +1~ -3dB(0.3~3KHz) | +1~ -3dB(0.3~2.55KHz) |
| Signal to noise ratio | ≥45dB | ≥40dB |
| Audio distortion | ≤5% | |
| Audio output power | ≥2W | |
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Transmitter | ||
| Â | Broadband | Narrow band |
| Output power | 25W/20W(VHF/UHF) | |
| Modulation Mode | 16KΦF3E | 11KΦF3E |
| Channel Power | ≥70dB | ≥60B |
| Signal to noise ratio | ≥40dB | ≥36dB |
| Parasitic harmonic | ≥60dB | ≥60dB |
| Audio response | +1~ -3dB(0.3~3KHz) | +1~ -3dB(0.3~2.55KHz) |
| Audio distortion | ≤5% | |
Each Set Package Contain:
1Ă— QTY KT-5800 Dual Band Mini Mobile RadioÂ
1Ă— Microphone
1Ă— Car Power CableÂ
1Ă— Clip for Speaker MicrophoneÂ
1Ă— Mounting BracketÂ
1Ă— Screw Sets
1Â Ă— User ManualÂ
Add USB Programming Cable:
Add Bluebooth Speaker Mic:
As pic show 1:
As pic show 2:
As pic show 3:
