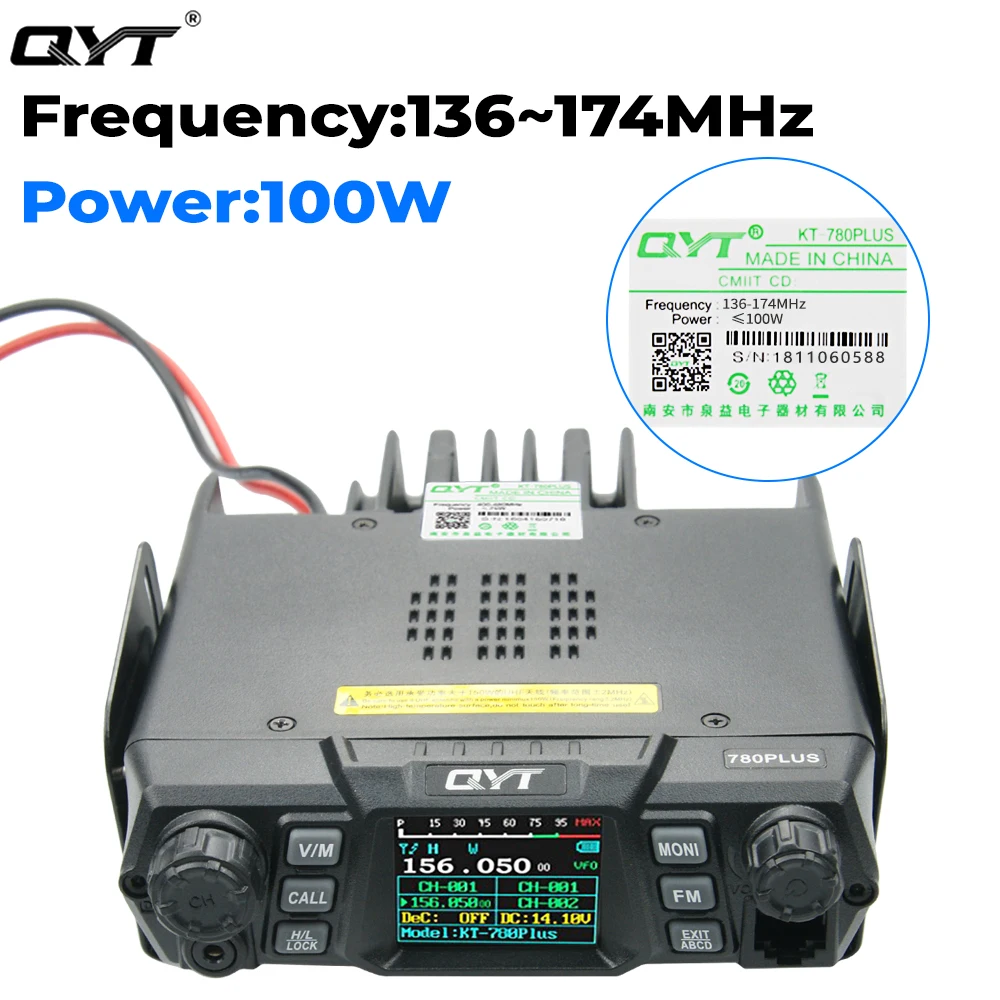

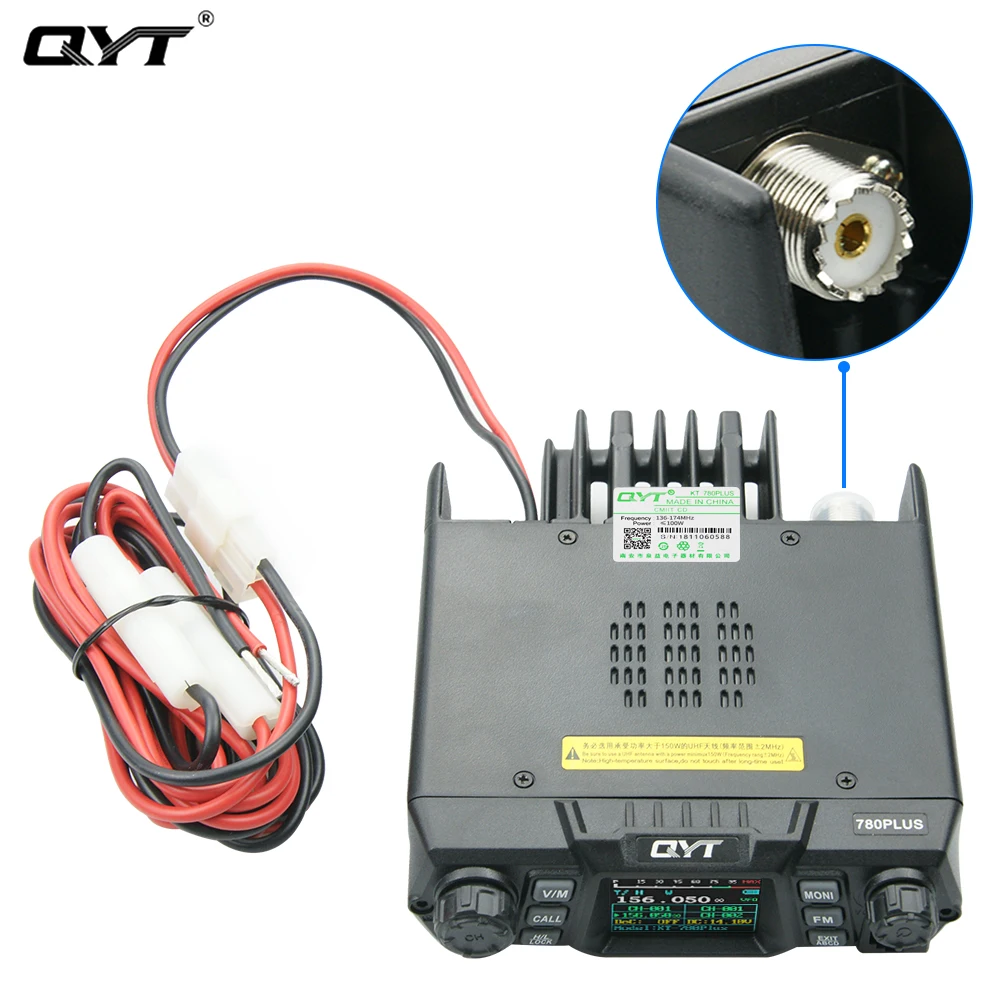

QYT KT-780 Plus 100W Powerful VHF 136-174MHz Ham Mobile Radio Transceiver 256 Channels Long Range Communication Car Radio
【QTY KT-780 plus Mobile Radio】

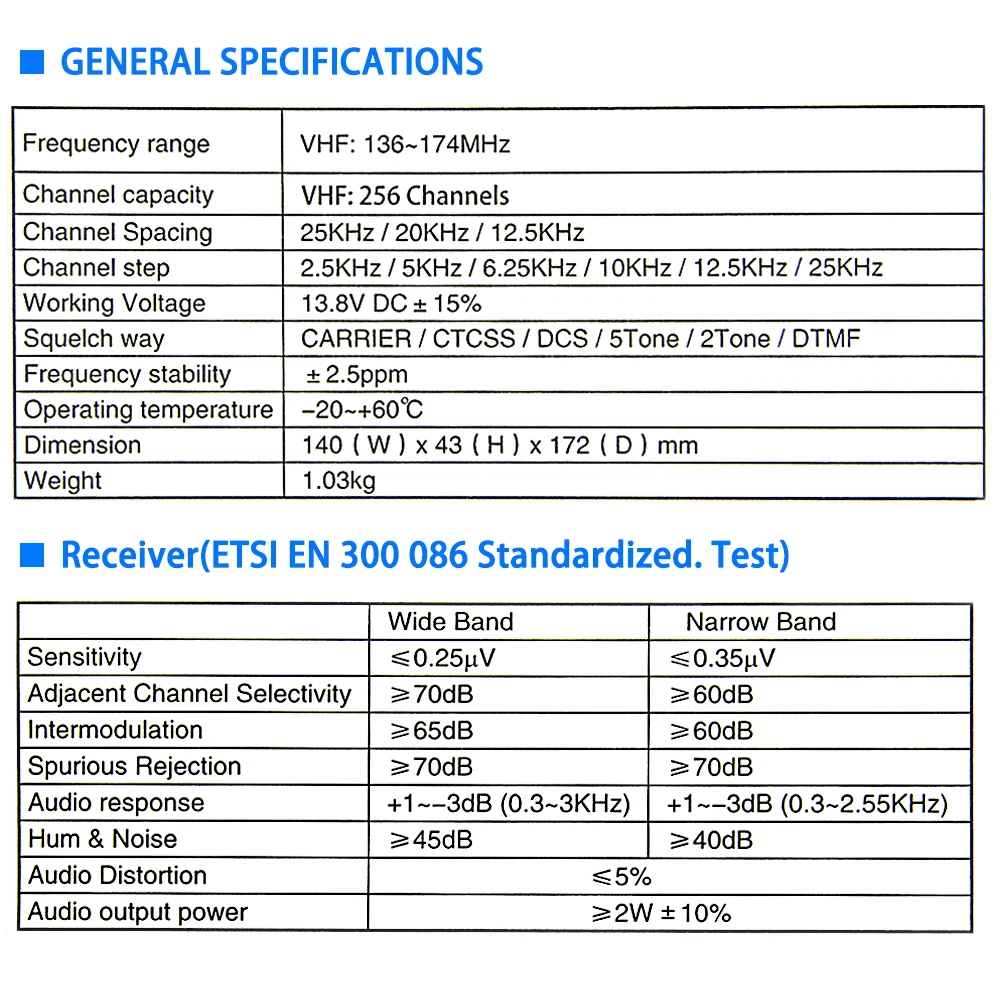

Product Specifications:
1.Frequency Range: (VHF) 136-174MHz
2.Channel Capacity: 256
3.Power output: 100W(H)/50W(M)/20W(L)
4.Currency output: 16A(H)/9A(M)/6A(L)
5.Channel Spacing: 25KHz/20KHz/12.5KHz
6.Frequency Stability: plusmn2.5ppm
7.Operating Temperature: -20℃ – + 60℃
8.Operating Voltage: 13.8V DC plusmn15%

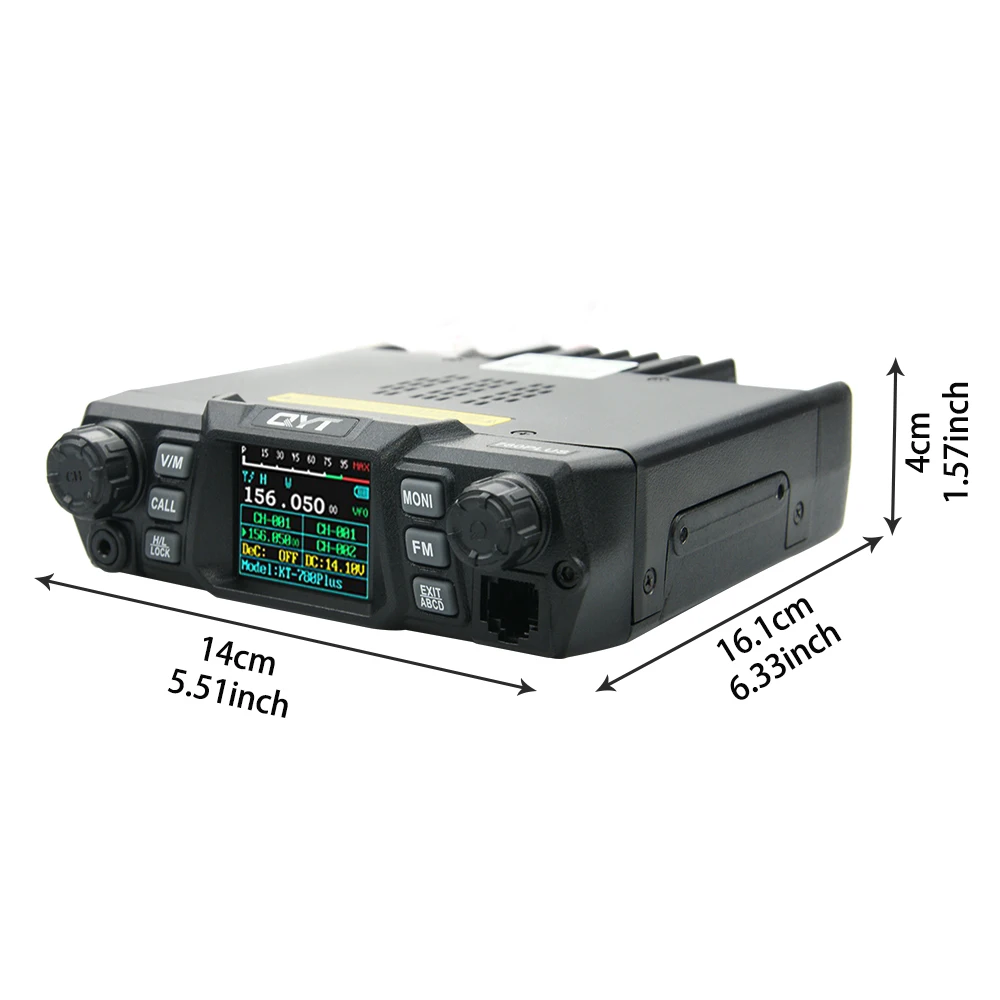

9.Size: 140(W)*43(H)*172(D)
10.Color: Black
11.Weight: 1.75kg(For the factory standard)
12.Weight: 2.12kg(For the Radio Set)
Features:
PC Program
DTMF function, 2 tone, 5tone
ANI (Caller ID)
FM Radio
Single-band/Quad-standby
DTMF function, 2 tone, 5tone
Remote stun, remote activate,remote revive
Long distance communication

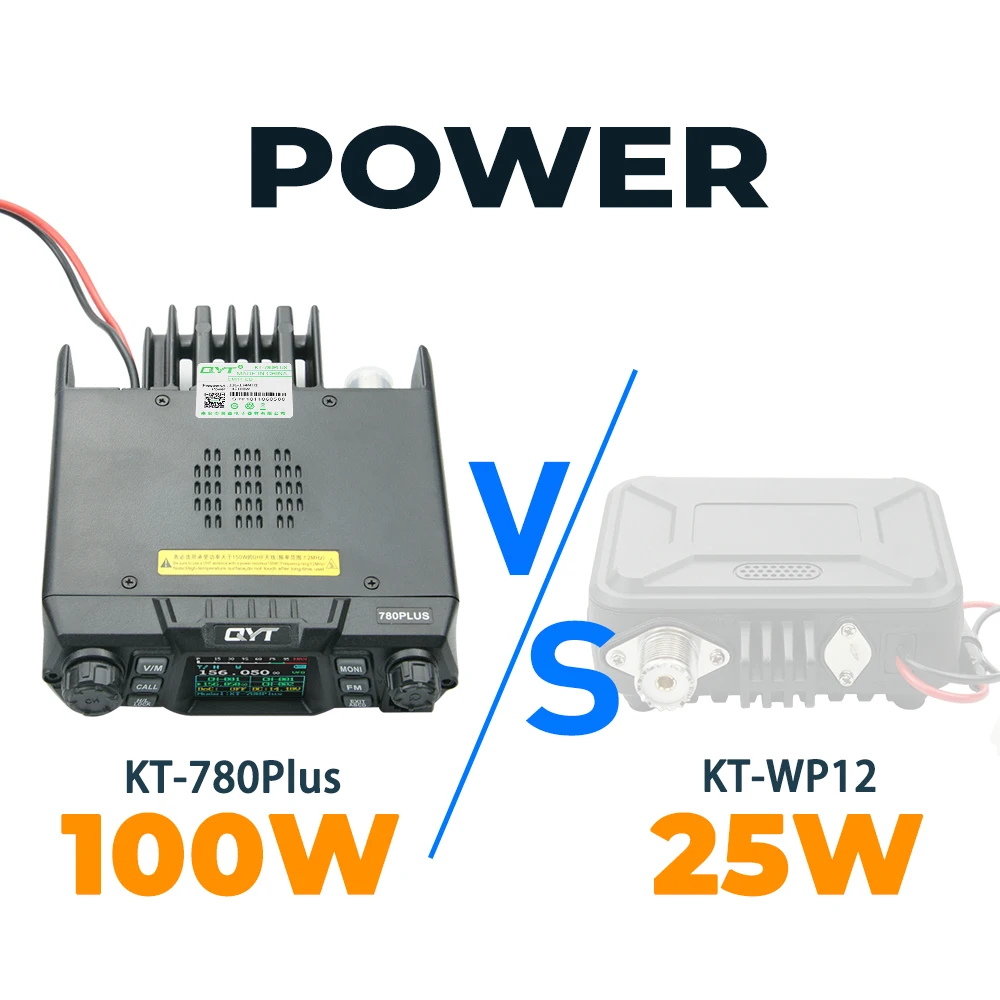

100W power output
Receiving:
Broadband Narrowband
Sensitivity ≤0.25μν ≤0.35μν
(12db SINAD)
Adjacent Channel ≥70db ≥60db
Selectivity
Intermodulation ≥65db ≥60db
Spurious response ≥70db ≥70db
Audio response+1~-3db(0.3~3KHz)+1~~3db(0.3~2.55KHz)
Signal to noise ratio ≥45db ≥40db
Audio distortion ≤5%
Audio output power ≥2W±10%
Transmiting:
Broadband Narrowband
Output Power VHF H 100W(16A) M 50W(9A) L 20W(6A)
System 16KΦF3E 11KΦF3E
Adjacent channel ≥70db ≥60db
power
Signal to noise ratio ≥40db ≥36db
Parasitic and ≥60db ≥60db
harmonic waves
Audio response+1~-3db(0.3~3KHz)+1~~3db(0.3~2.55KHz)
Audio distortion ≤5%

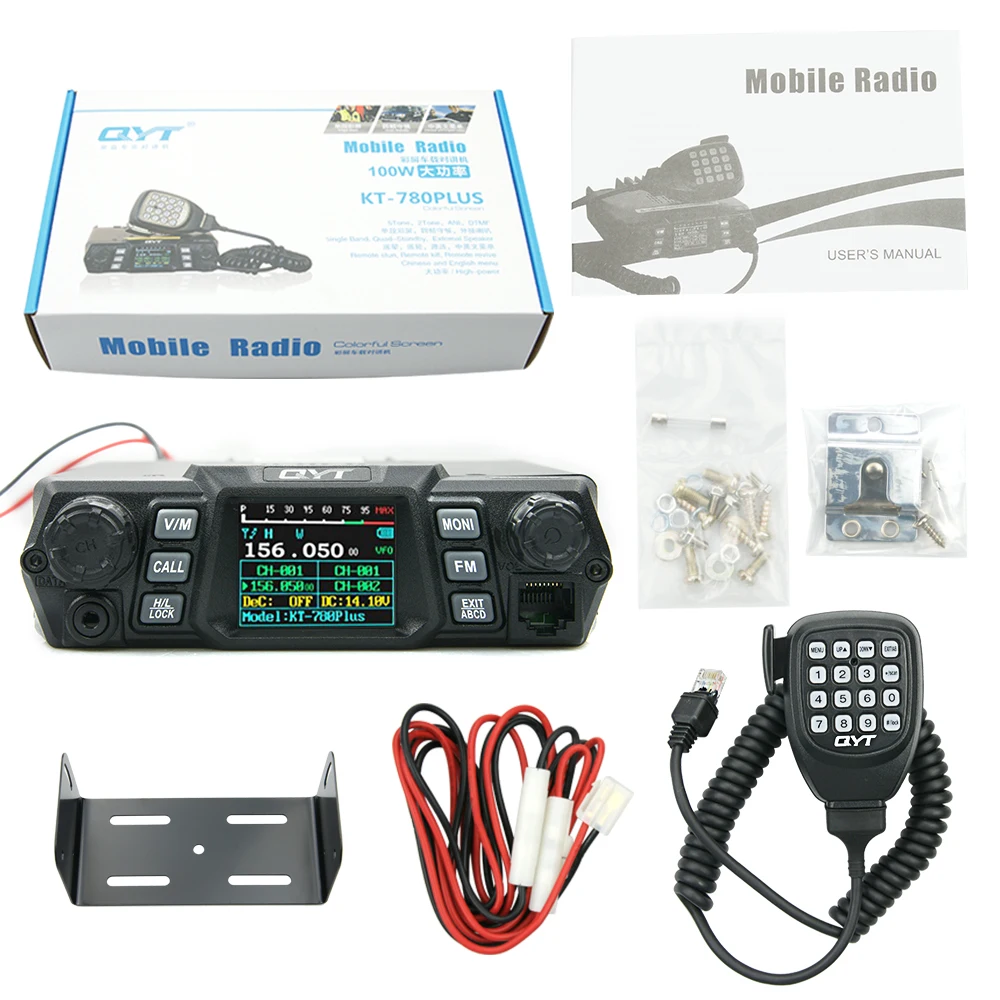

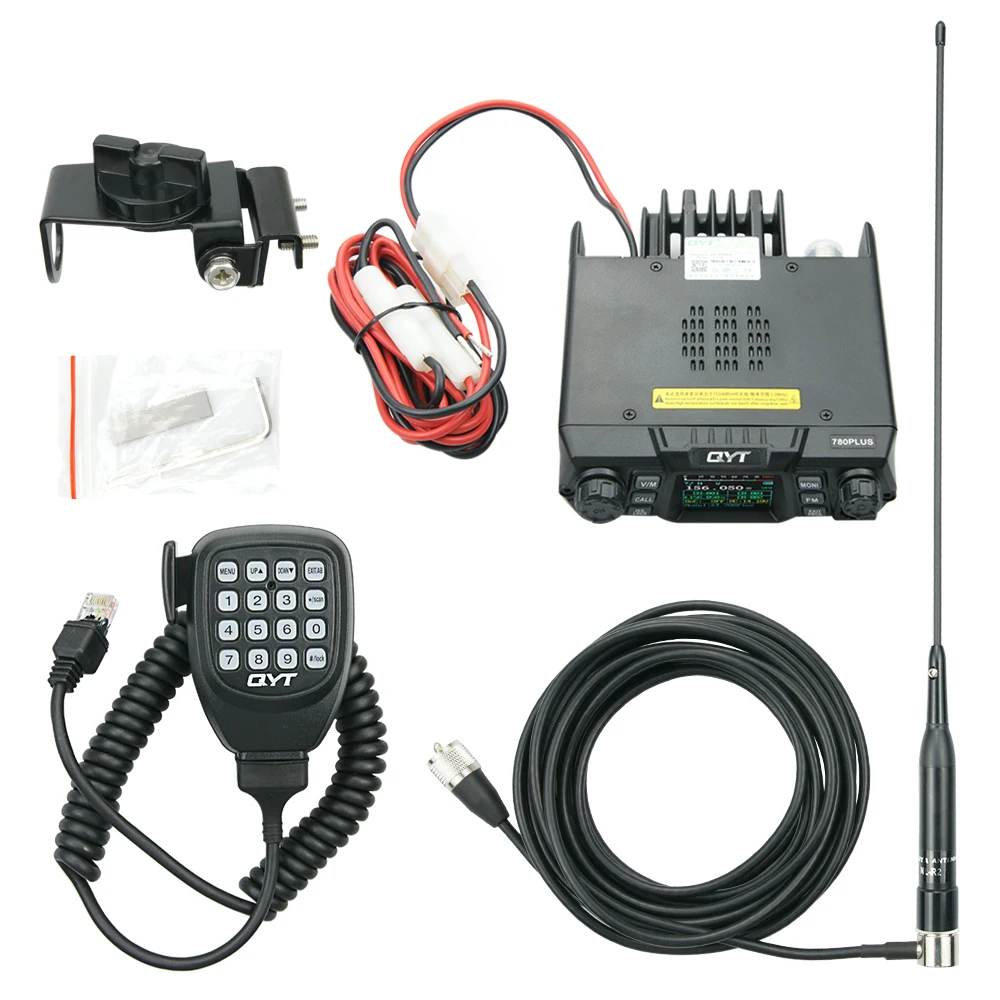

Package included:
QTY KT-780 plus Mobile Radio

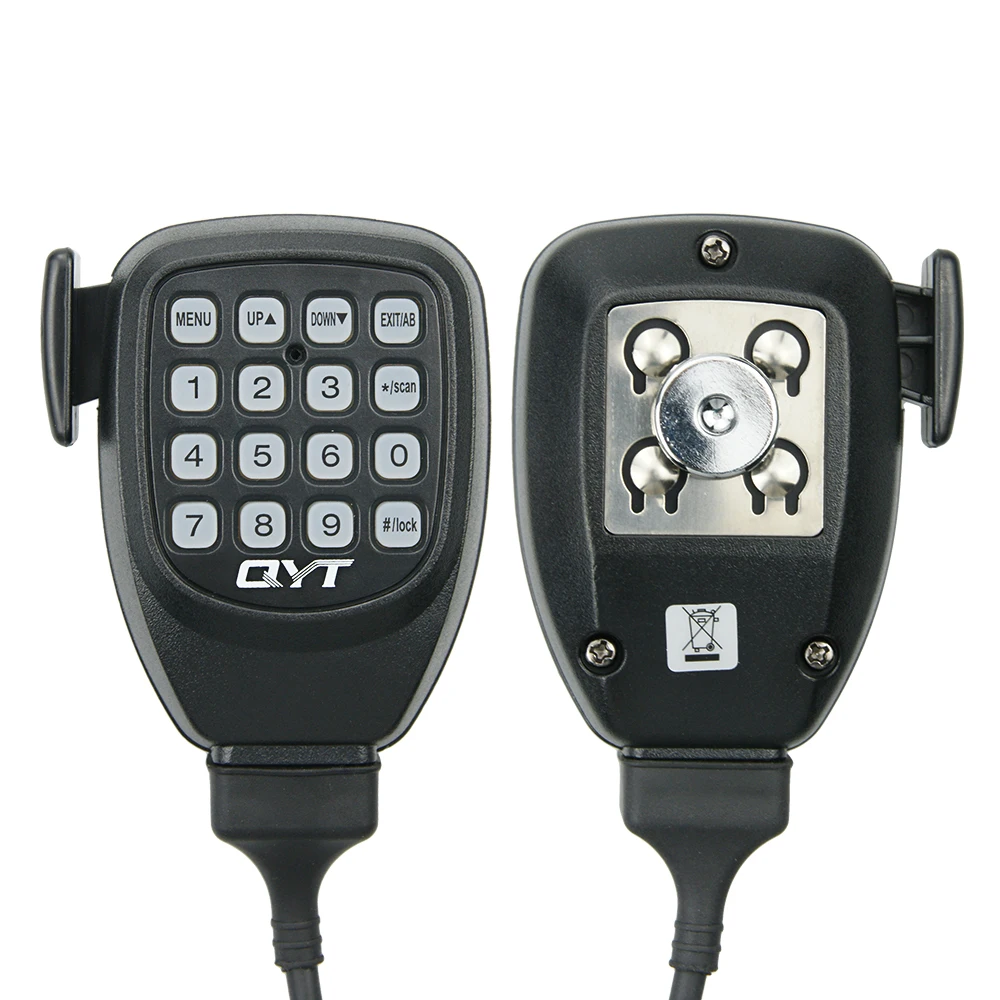

Microphone
Clip for Microphone

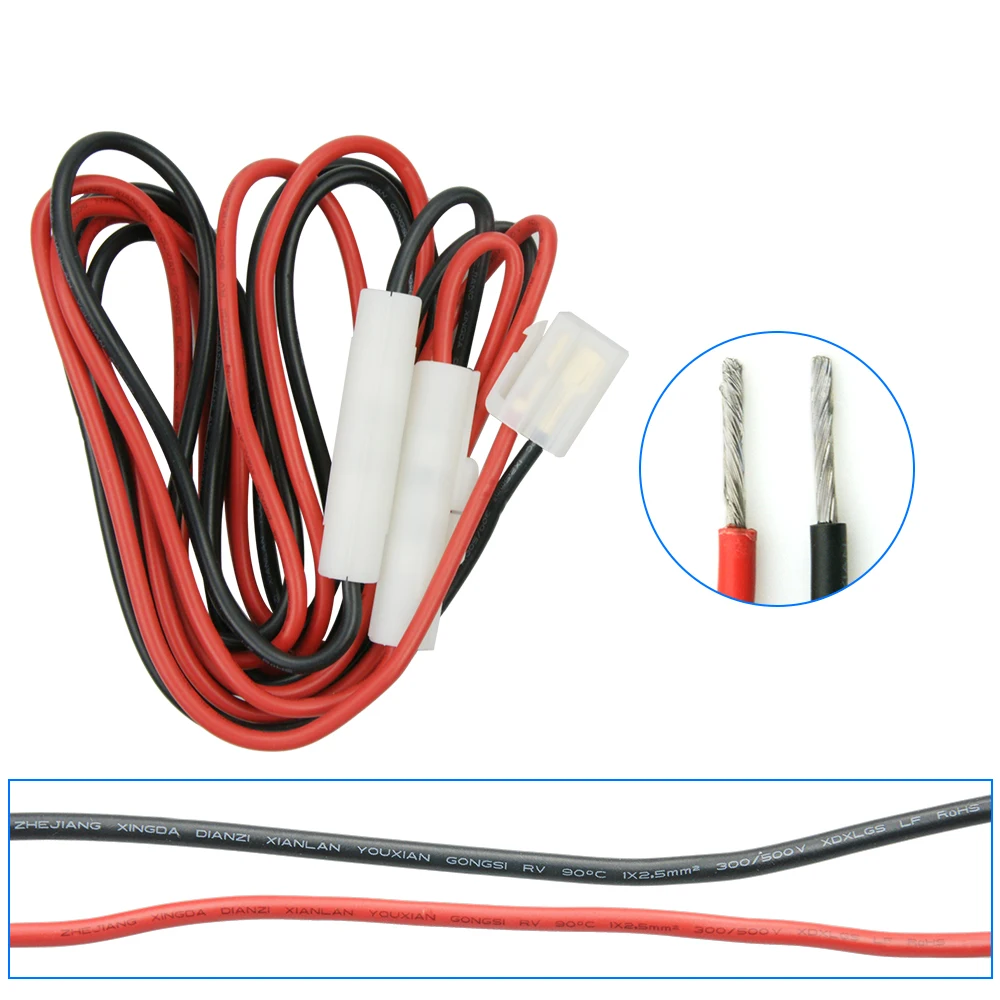

Power cable
Mounting Bracket
Screw and fuse
User Manual
