Shortwave HF VHF UHF Antenna Analyzer S-A-A-2 for NanoVNA V2 3GHz Vector Network- Analyzer

Original price was: $99.00.Current price is: $55.00.

& Free Shipping
Guaranteed Safe Checkout
Sold By: Two Way Radio

S-A-A V2 3GHz Vector Network- Analyzer Shortwave HF VHF UHF Antenna Analyzer

Description:
100% brand new and high quality
Feature:
The S-A-A-2 for NanoVNA V2 3GHz vector network- analyzer is a vector network- analyzer with higher measurement frequency developed and produced according to the LGPL license agreement and based on the design of OwOComm.
SAA-2 / for NanoVNA V2 uses a similar user interface to for NanoVNA, but uses a different technical architecture. SAA-2 / for NanoVNA V2 does not load initial calibration data at startup, and does not automatically insert calibration data after the user changes the frequency After each start and frequency change, the calibration data must be recalibrated or recalled. Please read the instruction manual carefully before use to avoid damage to the device.
Specifications:
Frequency range: 50kHz-3GHz
System dynamic range (calibration): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
S11 noise floor (calibration): -50dB (up to 1.5GHz), -40dB (up to 3GHz)
Scanning speed: 100 points / second
Display: 2.8 inches, 320 x 240
USB interface: Micro USB
Power supply: USB, maximum charging current 1A
Battery: 1950mAh lithium ion
Battery connector: JST-XH 2.54mm
Maximum scan point (on device screen): 201
Maximum scan point (USB): 1024
Port 2 return loss (1.5GHz): 20dB typ
Port 2 return loss (3GHz): 13dB MIN
VNA-QT software compatible system: for Linux, for Windows (7+), for Mac OS planned

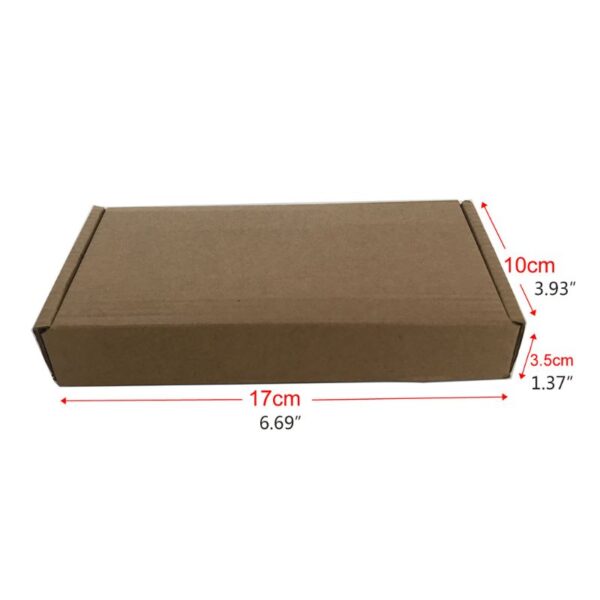

Small box size: about 17x10x3.5cm/6.69×3.94×1.38in
Single set weight: about 225g
Note:
Transition: 1cm=10mm=0.39inch
Please allow 0-3cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Includes:
1 x S-A-A-2 host (built-in 1950mAh battery)
1 x USB Data Cable
2 x 15cm SMA Male to Male RG316 RF Cable
1 x SMA Simple Calibration Set Open
1 x SMA Simple Calibration Set Short
1 x SMA Simple Calibration Set Load
1 x SMA Female to Female Connector
DIY Accessories
Weight 0.6 kg
Dimensions 300 × 200 × 100 mm
