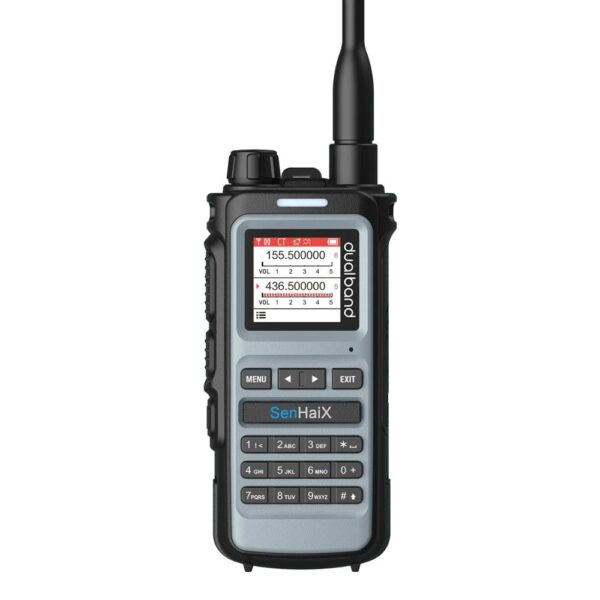

SENHAIX 8600 ham Walkie Talkie TPU Dual Band HAM Transceiver Interphone Handheld Radio
SENHAIX 8600 Walkie Talkie 5W Dual Band Standby Waterproof Two-Way Radio 128 Channels VOX Function Hiking Ham Radio Transceiver
Black is sent by default. If you like other colors (green or gray), please leave a message when placing an order, thank you!
Product Features
- Dual Frequency Waiting
- Power switching
- Voice control function
- Voice control delay
- Channel encryption
- 1750 relay
- Power saving mode
- Voltage display
- Scan function
- FM radio
- PTT ID
- Automatic backlight
Technical Specifications
General Specification | ||
Frequency Range | UHF 400-470MHz | |
VHF 136-174MHz | ||
Channel | 128 | |
Step | 25KHz(Broadband), 12.5KHz(Narrow band) | |
Stable | ±2.5ppm | |
Voltage | 7.4V DC ± 20% | |
Working Temperature | -20℃ ~ +60 ℃ | |
Antenna impedance | 50Ω | |
Dimension | 134*60*38mm(include battery) | |
Weight | 270g(include battery, antenna) | |
Transmit | ||
Broadband | Narrow band | |
TX power | 5W | 5W |
Modulation | 16KφF3E | 8KφF3E |
Adjacent channel power | ≥65dB | ≥60dB |
Signal to noise ratio | ≤-40dB | ≤-40dB |
Parasitics and harmonics | ≤65dB | ≥60dB |
Spurious emission | ≤-36dBm | ≤-36dBm |
Audio response | 300Hz-3KHz | 300Hz-3KHz |
Audio distortion | ≤5% | ≤5% |
Receive | ||
Broadband | Narrow band | |
Sensitivity | -120dBm (20db SINAD) | -120dBm (20db SINAD) |
Intermodulation | ≥60dB | ≥55dB |
Adjacent channel selectivity | ≥60dB | ≥55dB |
Glitch response | ≥60dB | ≥55dB |
Audio response | 300Hz-3KHz | 300Hz-3KHz |
Signal to noise ratio | ≥45dB | ≥40dB |
Audio distortion | ≤5% | ≤5% |
Audio output power | 1W | 1W |
