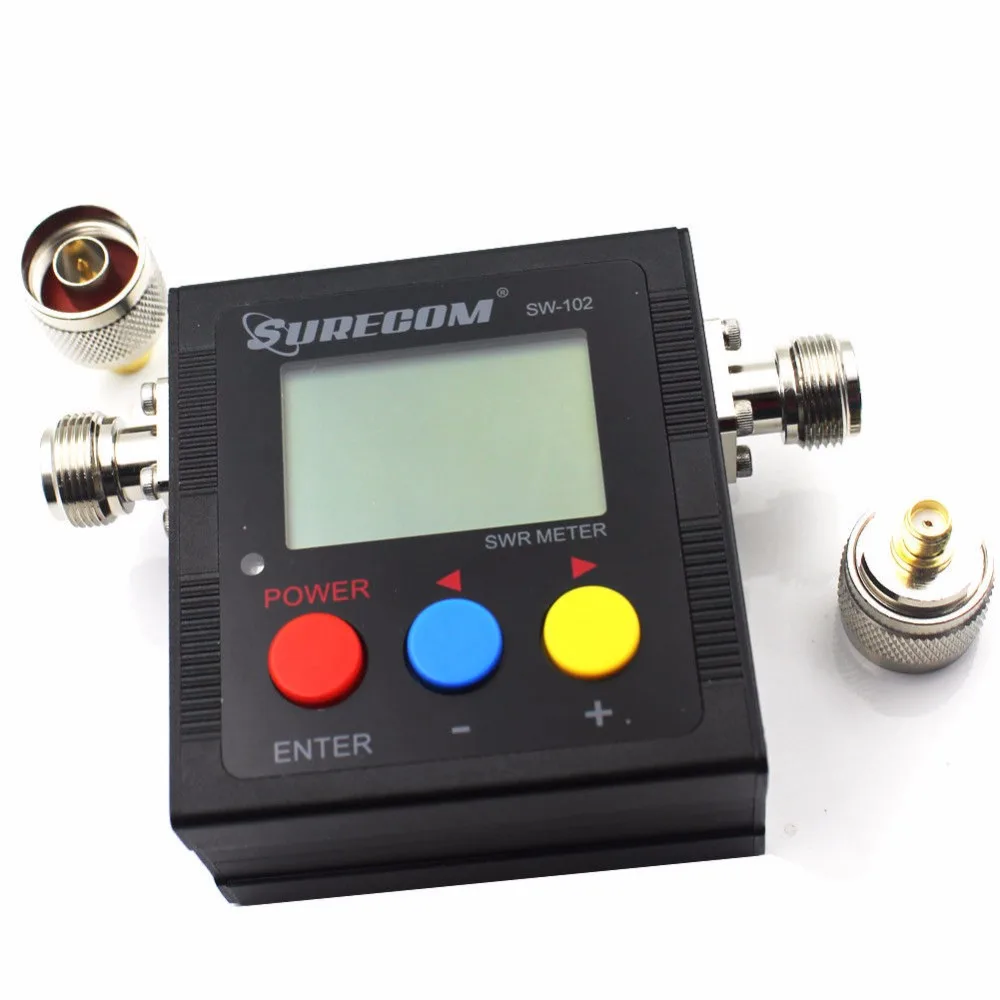

SURECOM SW-102 (With Two Connector) SW102 125-525 Mhz Digital VHF/UHF Power & SWR Meter
Introduction
VSWR. Forward and reflected power direct digital readout, without any calibration.
Maximum measurable power range up to 120W.
low insertion loss (0.3 decibels or less) structure allows it to be permanently connected.
Build in Frequency counter .
Feature & Specification
Frequency range: 125 – 525MHz
Measurable power range: 0 – 120W
Maximum power: 120W Accuracy: mean + / – 5%
Impedance: 50Ω
Size: W 76 X H 77 X D35 mm.
Weight: <260 grams
Interface: N-J Interface
(SW-102 is not for DMR system)
| MAX. Power in | 120 W |
| V.S.W.R | 1.00~19.9 |
| Frequency Ranger | COVER:125MHz~525MHz |
| Insertion Loss | < 0.15dB(VHF) , < 0.25dB(UHF) |
| Temperature | 0~60 |
| Battery Build-in | 14500 Li-ion |
| Size | 66*68*37 (mm) |
| Power in | 5V (micro usb) |
| Backlight | AUTO |
| Interface (in and out ) | N(SL16) or (M SO239 option) |
| Weight | <260g |

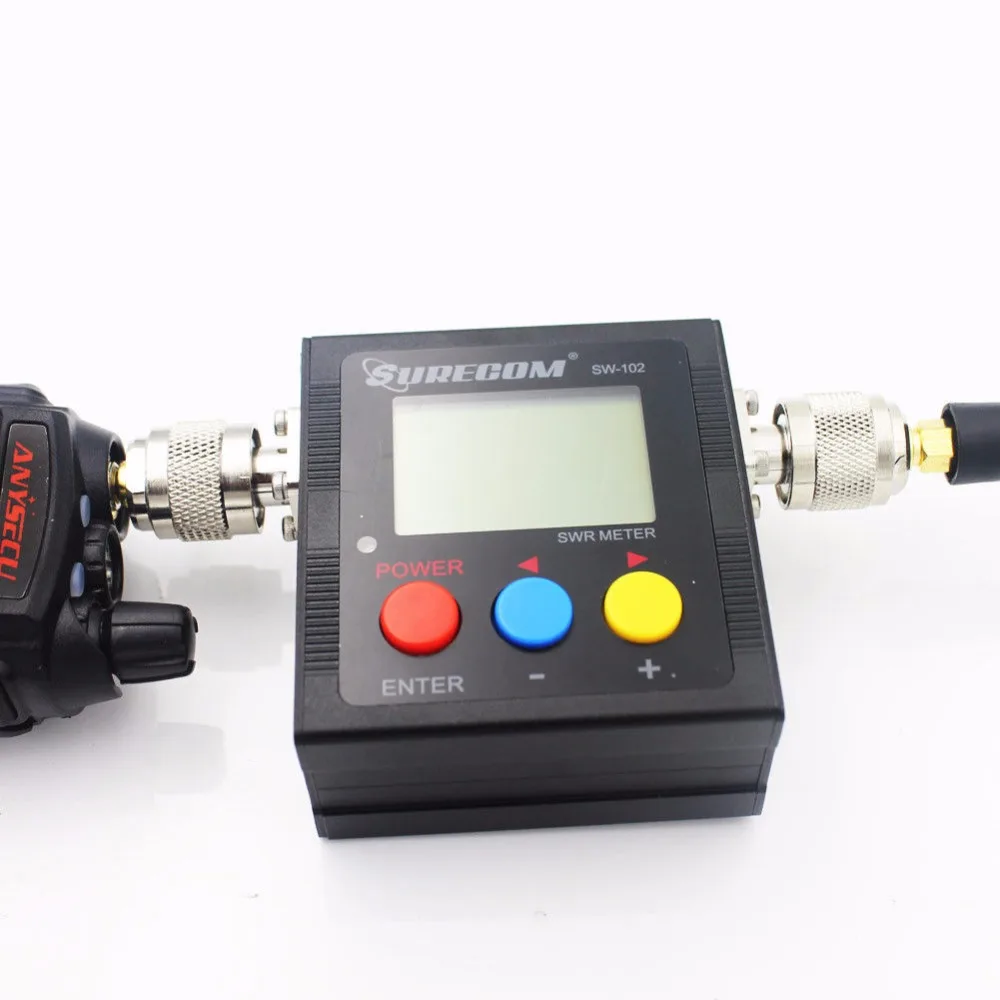

Connect the Output of your transceiver to “TX” and Antenna or Load to “ANT”. Proper adaptor/cable is required if your device has different type of connectors.
Press the red Power button (RED and YELLOW) to power on.
After 2 seconds of LCD self test, its ready for normal measurement.
2 minutes after no power was measured, it will power off automatically.
Press and hold the red button for 2 seconds to turn off manually.
Package Contents
1x SURECOM SW-102-UV Digital VHF/UHF Power & SWR Meter
1x Power PSU 100-240V
1x Charger Cable
1x English Users Manual

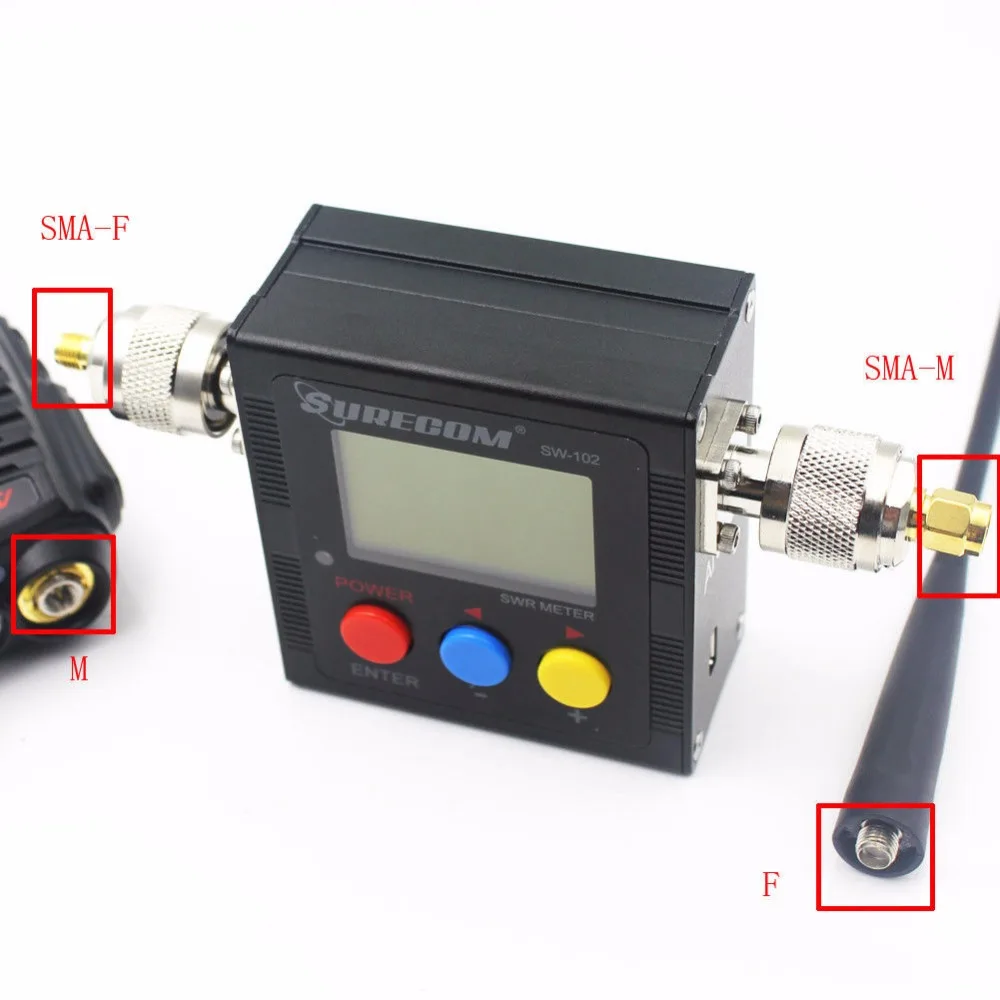

1x Connector SMA-M to SL16
1x Connector SMA-F to SL16
