TYT Two Way Radio MD-398 VHF136-174MHz or UHF400-470MHz Walkie Talkie IP67 Waterproof DMR Digital Radio MD398 10W intercom
NOTE: If you need software, please contact us.
Main Features:
Compatibe with Mototrbo Tier I & II
10Watt output power
2800mAh battery capacity
Private/group/all call in digital mode
Color LCD display
Text message in digital mode
Scan
Encryption function
IP67 waterproof
|
Item number |
MD-398 |
|
General |
|
|
Frequency Range |
136-174MHz or 400-470MHz |
|
More frequency available |
1000 |
|
Working voltage |
7.2v |
|
Working temperature |
-30℃~+60℃ |
|
Storage temperature |
-40℃~+85℃ |
|
Continuous working time (for reference) |
Analog:15hours Digital:25hours |
|
Battery capacity |
2800Mah li-ion |
|
Transmitter |
|
|
Channel spacing |
12.5KHZ |
|
Frequency stability |
+/-1.5ppm |
|
TX power |
Low:1W High:10W |
|
FM noise |
-40dB @ 12.5KHZ |
|
Spurious emission |
<-36dB m @ 1GHZ,> -30dB m @ 1G |
|
Adjacent channel selectivity |
-60dB @ 12.5KHZ |
|
FM modulation mode |
12.5KHZ:11 F 0 F 3 E |
|
4FSK digital modulation mode |
12.5KHZ(data only):7K60FX |
|
Modulation limit |
2.5KHZ @ 12.5KHZ |
|
Audio response |
+1dB~-3dB |
|
Rated audio distortion |
≤3% |
|
Digital protocol |
ETSITS102361-1,-2,-3 |
|
Vocoder type |
AMBE+2TM |
|
Receiver |
|
|
Frequency stability |
+/-1.0ppm |
|
Analog sensibility |
0.35uV/-116dBm(20dB SINAD) |
|
Digital sensibility |
0.3 uV/-117.4dBm(BER 5%) |
|
Spurious response |
TIA603C: 65dB |
|
Adjacent channel selectivity |
TIA603C: 60dB @ 12.5KHZ |
|
Spurious response suppression |
TIA603C: 70dB ETSI: 70dB |
|
Receiving spurious emissions |
<-57dBm @ 1GHZ,> -47dBm @ |
|
Blocking |
84dB |
|
Rated audio power |
1W |
|
Audio response |
+1dB~-3dB |
|
Rated audio distortion |
≤3% |

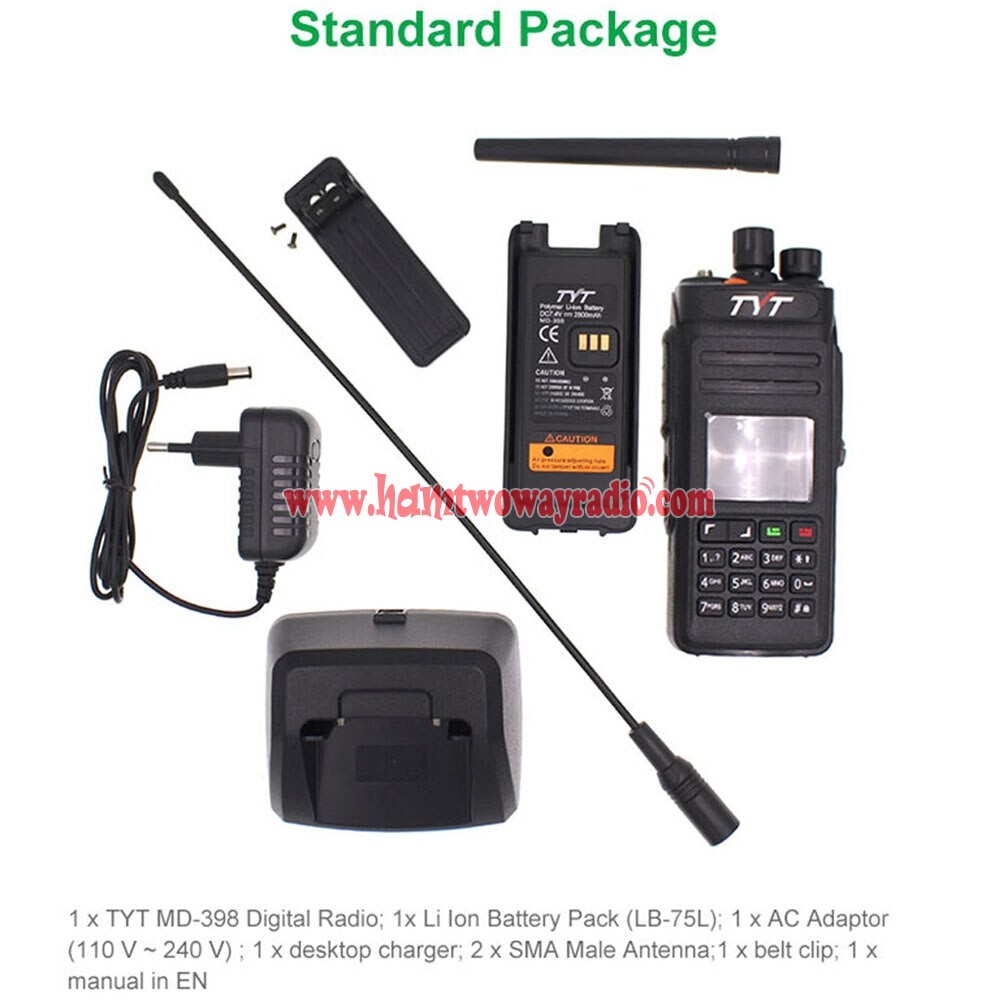

1×7.4 V 2800 mAh Li Ion Battery Pack (LB-75L)
1 x AC Adaptor (110 V ~ 240 V)
or 1 x Car charger cable
or 1 x eliminator
