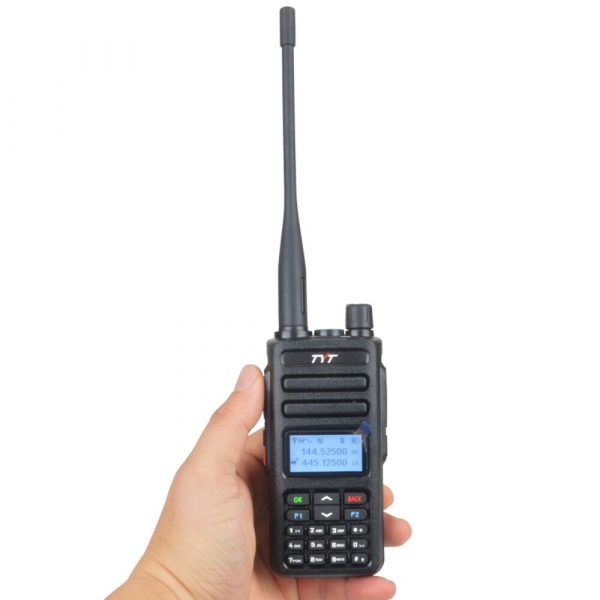

TYT MD-750 Dual Time Slot AMBE+2TM DMR & Analog Combined 5W Dual Band VHF 136-174MHz & UHF 400-470MHz FM VOX Walkie Talkie with Flash light
Features:
Vocoder Type: AMBE+2TM
Dual time slot for point to point
Dual time slot for repeater
5Watt Output power
Dual band VHF:136-174MHz, UHF:400-470MHz
CTCSS/DCS
Programmable CTCSS/DCS
65-108MHz Commercial FM Radio for receiving only
VOX
Dual Channels/Frequencies Wait
Wide band/narrow band selectable
En-tone detection
DTMF encode/decode
PTT ID
Password
Firmware update
Call detection
Call prompt
Remote monitor/Emergency alarm
Contact view and edit
Call info view and edit
SN Equipment identity code for device verification
Pc programmable function
Compatible with Mototrbo and Hytera DMR radios
Specifications:
General |
|
Frequency Range |
Dual band, VHF:136-174MHz & UHF:400-470MHz |
Channel |
1024 |
Frequency Stability |
±1ppm |
Operating Temperature |
-30°c ~+60°c |
Voltage |
7.4V DC |
Receiver |
|
Analog Sensibility |
0.2uV @12dB SINAD |
Digital Sensibility |
0.25uV (BER:5%) |
Adjacent channel selectivity |
≤-60dB@12.5KHz |
Co-channel rejection |
≥65dB |
Spurious response |
≥70dB |
Audio response |
+1~-3dB |
Rated audio distortion |
≤5% |
Audio power |
1W |
Modulation noise |
≥45dB@25KHz/≥40dB@12.5KHz |
Transmitter |
|
Power Output |
High:5W, Low:1W |
Transmit Current |
Analog≤ 1.6A, Digital ≤0.9A |
Standby Current |
0.15A |
FM Modulation mode |
11K Ø F3E @12.5KHz 14K Ø F3E @20KHz 16K Ø F3E @25KHz |
4FSK digital mode |
12.5KHz(data only):7K60FXD 12.5KHz(data and voice): 7K60FXW |
Modulation distortion |
≤5% |
Hum and noise |
≥45dB@25KHz/≥40dB@12.5KHz |
Adjacent channel power |
≤-60dB@12.5KHz |
Audio Response |
+1~-3dB |
Antenna port spurious |
6KHz-1GHz: ≤ -36dBm 1GHz-12.75GHz: ≤-30dBm |
Digital Protocol |
ETSI-TS102 361-1,-2,-3 |
Packaging contains:

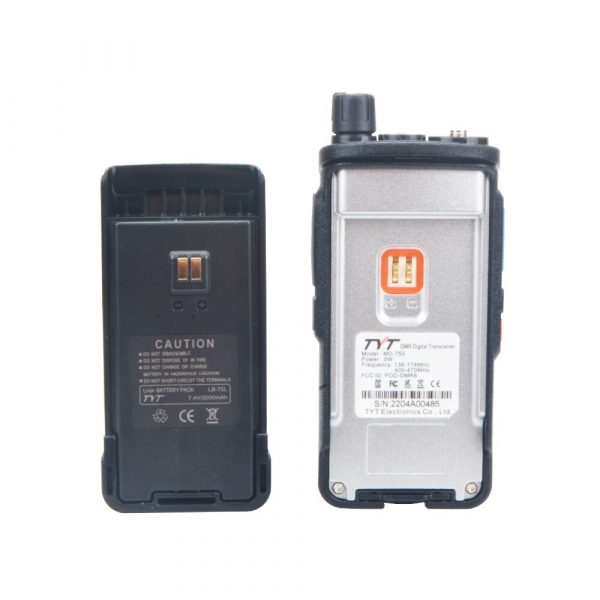

1× MD-750 Dual band DMR Digital Radio
1× LB-75L 2000mAh Li-ion Battery Pack
1× Antenna
1× Desktop Charger
1× AC Adapter
1× Belt Clip
1× English User Manual
1× PTT Earpiece
