TYT MD-UV390 DMR Digital Walkie Talkie UV390 IP67 Waterproof Dual Band UV transceiver GPS Optional Upgrde of MD-390 + USB cable
Note: if you need software, please contact us.
Factory 100% original product, please don’t to FLASH the machine privately, because the version of each machine is different.
Main Functions
Time-Division Multiple-Access(TDMA) digital function
Compatible with other brand Tier I and II
Comply with digital protocol ETSI TS 102 361-1,-2,-3
P67 waterproof
Analog and digital combined
Dual band,dual display,dual standby
Up to 3000 channels
10000Â contacts
Color LCD display
Transmit interruption
Group call match(Promiscuous)
Private call match(Promiscuous)
Dual time slot for repeater
Dual time slot for point to point
Lone worker
Encryption function
Single call,group call,all call
Remote kill/stun and activate
8 hours of recording
Message function
CTCSS/DCS
Programmable functional keys
|
Item number |
MD-UV390 |
|
General |
|
|
FrequencyRange |
136-174Mhz &400-480MHz |
|
Channel No. |
3000 |
|
Antenna impedance |
50Ω |
|
Operating Voltage |
7.4Â V DC |
|
Operating Temperature |
-30°C~+60°C |
|
Dimension(W x H x D) |
131x61x36mm |
|
Battery |
2200mAh Li-ion |
|
Transmitter |
|
|
Output power |
≤5W(H) ≤1W(L) |
|
Vocoder type |
TDMA |
|
Frequency Stability |
± 1.0 PPM |
|
Adjacent channel power |
≤-60dB |
|
Spurious Radiation |
Antenna:9KHz-1GHz ,≤ -36dBm 1GHz-12.75GHz ,≤-30dBm |
|
Hum and noise |
-40dB *12.5KHz |
|
4 FSK Digital Mode |
12.5KHz(data only):7k60FXD 12.5KHz(data+voice)7k60FXE |
|
Receiver |
|
|
Digital sensitivity |
0.25uVÂ (BER 5%) |
|
Audio power |
1W |
|
Autio response |
=1dB-3dB |
|
Adjacent Channel Selectivity |
≤-60dB *12.5KHz |

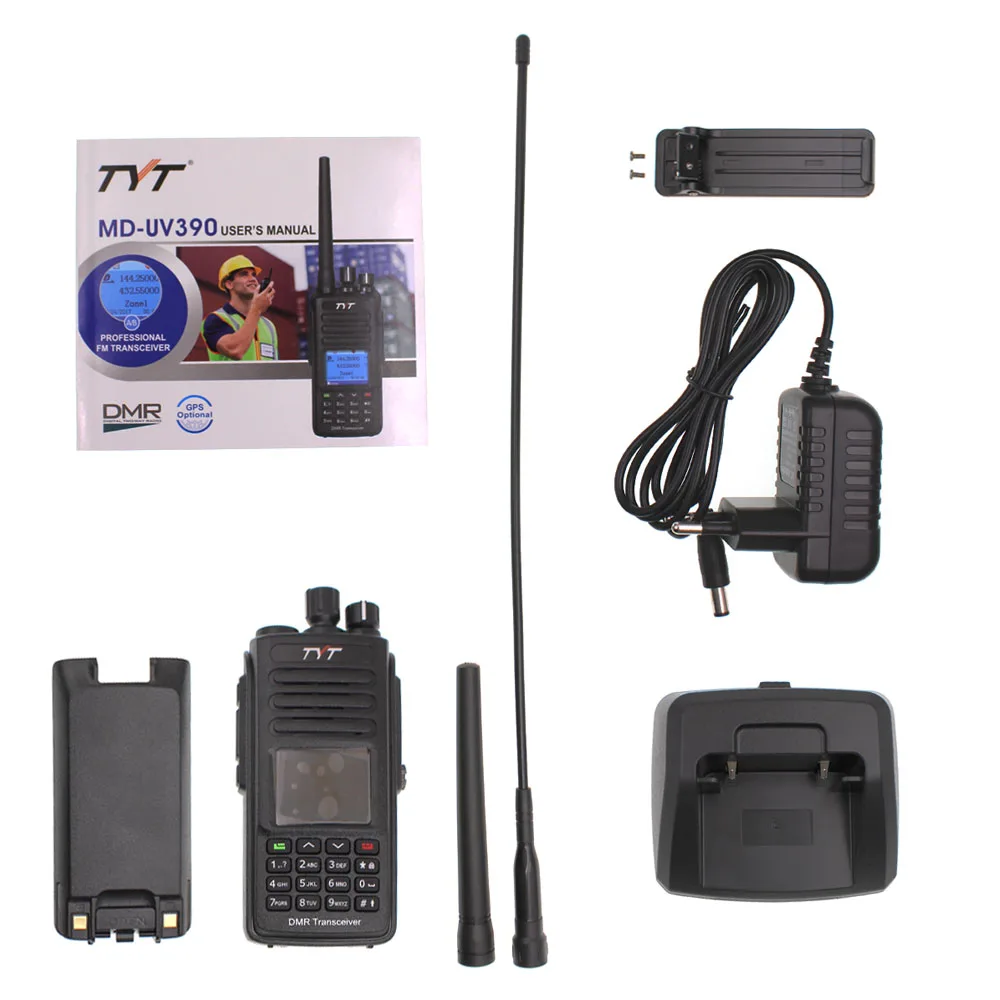

Standard package
1 x MD-UV390Â DMR radio or with GPSÂ MD-UV390 Radio
1 x Li-Ion Battery
2 x Antenna
1 x Charger
1 x Belt clip
1 x Manual
1 x USB programming cable
