Two Way Radio, TYT Radio

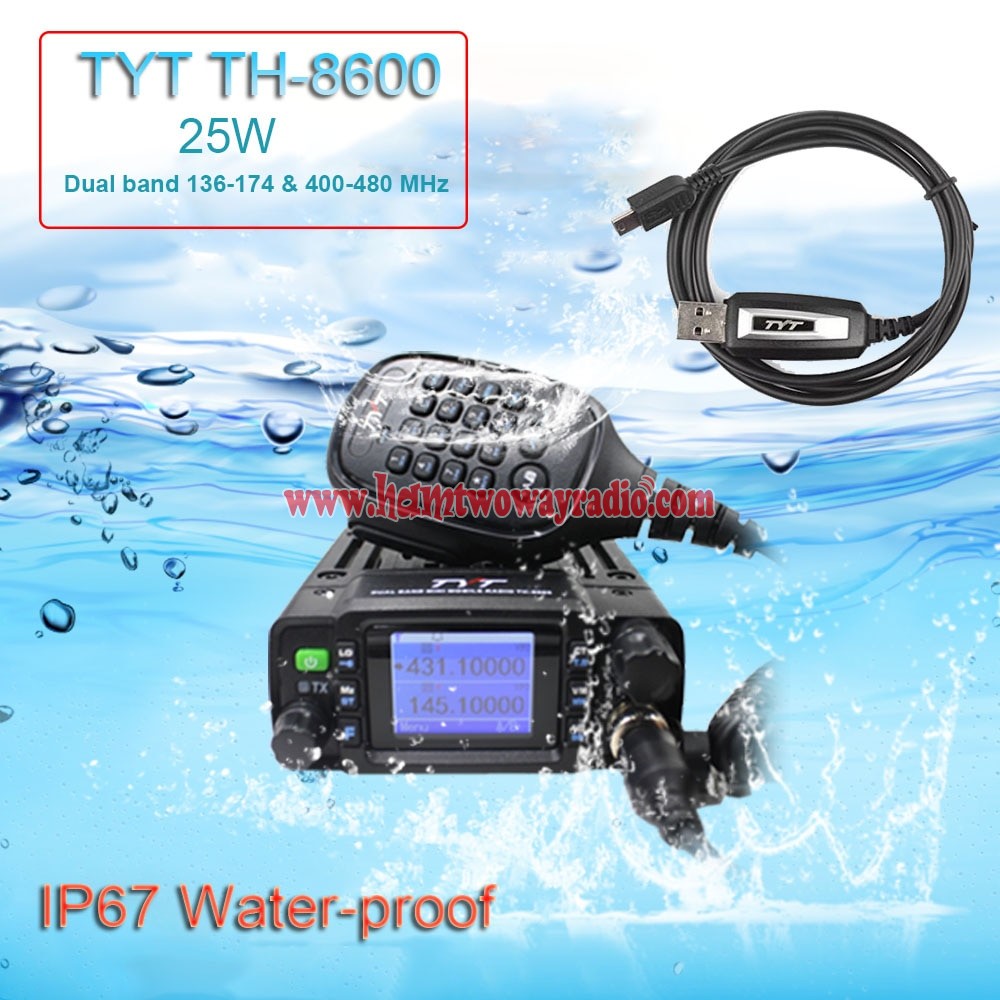

TYT TH-8600 IP67 Waterproof Mobile Radio UHF VHF Dual Band 25W Amateur Car Radio

$135.89 – $145.79

& Free Shipping

Ships From

CHINA

Color

TH-8600-IP67

TH-8600-IP67-USB

Clear

Guaranteed Safe Checkout

Sold By: Two Way Radio

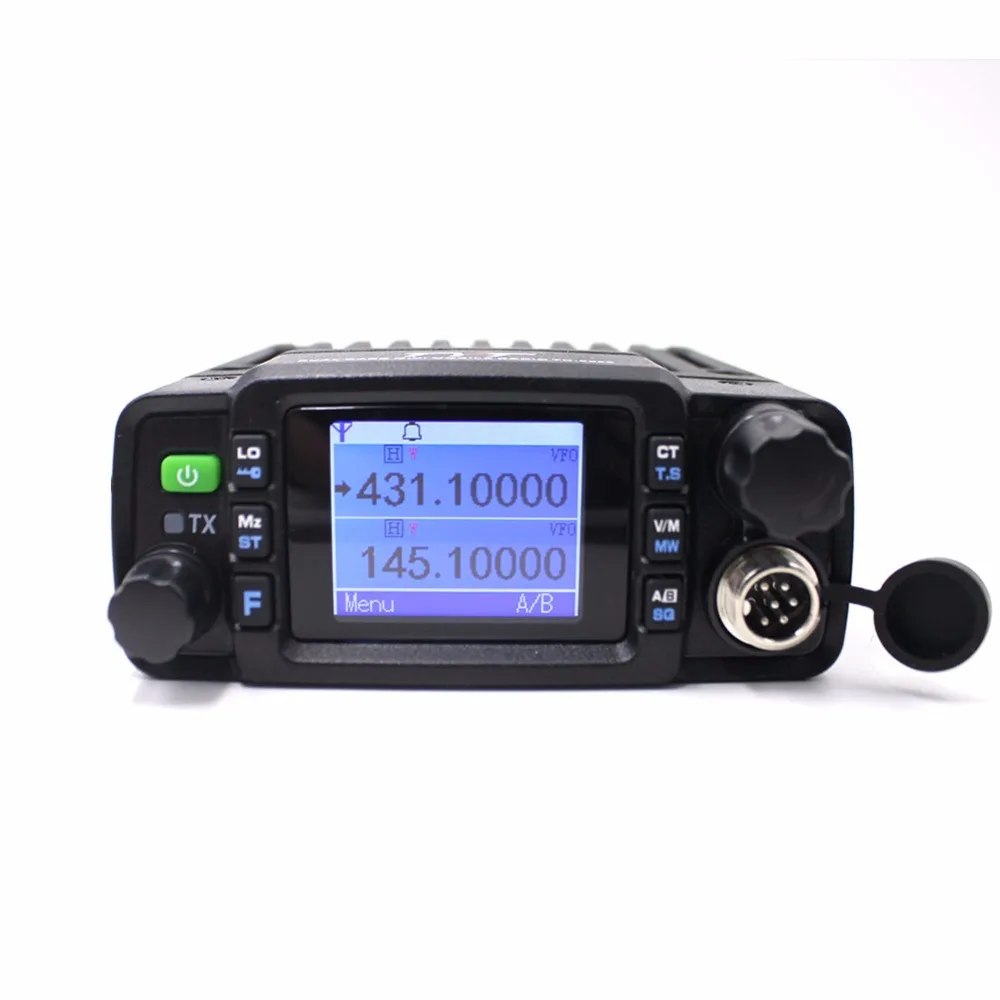

TYT Mini Radio TH-8600 IP67 Waterproof Dual Band 136-174MHz/400-480MHz 25W Amateur Car Radio TH8600

Note:if you need the software, please contact us.

Main Functions

Large color LCD display

Dual band, dual display and dual standby

25W for VHF and 20W for UHF high power

200 storage channels

P1-P4 programmable functional keys

IP67 waterproof

DTMF/2Tone/5Tone

Remote stun/kill and activate

Specification
Item number	TH-8600
General
Frequency Range(MHz)	136-174/400-470MHz
Channel No.	200
Frequency Stability	±1ppm
Operating Temperature	-30℃～+60℃
Operating Voltage	13.8V DC
Dimension	12510745mm
Weight	1.2kg
Transmitter
Output power	VHF25W/UHF20W
Transmitting Current	4A*13.8V
Standby Current	0.2A*13.8V
FM Modulation	Wide band:16K0F3E
	Narrow band:11 K0F3E
Modulation distortion	＜5%
FM Hun and Noise	≥45dB25KHz ≥40dB12.5KHz
Adjacent Ch. power	≥60dB12.5KHz ≥70dB25KHz
Audio response	+1~-3dB
Receiver
Sensibility	0.2μV
Adjacent Ch. Selectivity	60dB12.5KHz 70dB25KHz
Intermodulation	≥60dB/≥65dB
Spurious Rejection	≥70dB
Audio response	+1~-3dB
RF Sensitivity	-122dbm(12db SINAD)
Audio Distortion	<5%
FM Hun and Noise	≥45dB25KHz ≥40dB12.5KHz
Rated audio	4W

Unit contain

1 x TH-8600 Mobile radio

1 x Power cable

1 x Hand-held mic

1 x install bracket and screw set

1 x User’s manual in EN

or 1 x USB Programming cable
