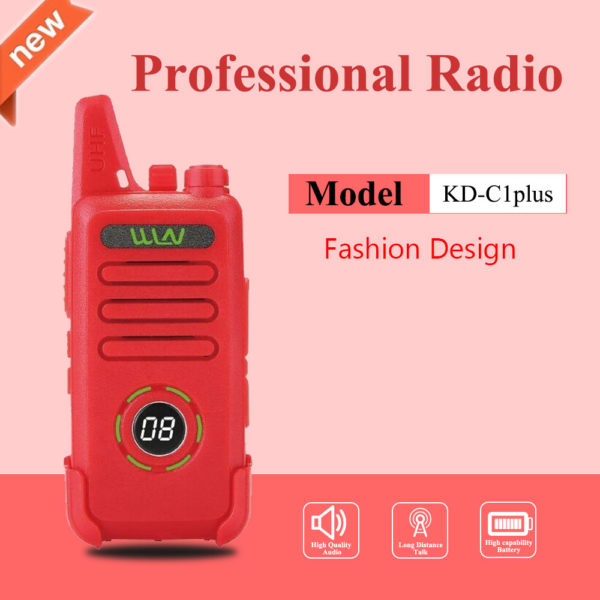

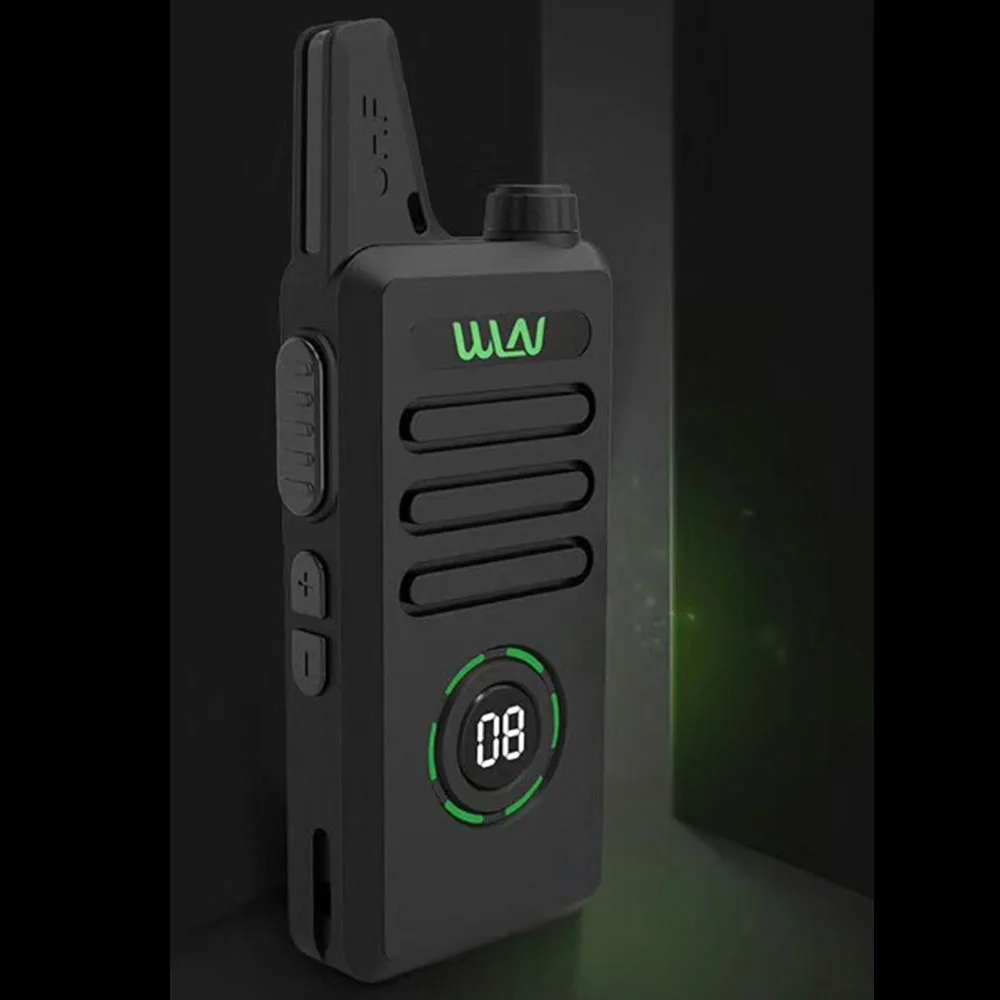

WLN KD-C1 Plus mini Walkie Talkie UHF 400-470MHz Slim Two Way Radio

$24.09$29.91

CHINA
CHINA
KD-C1PLUS-Red
KD-C1PLUS-Red
KD-C1PLUS-Black
KD-C1PLUS-Black
KD-C1PLUS-white-CGD
KD-C1PLUS-white-CGD
KD-C1PLUS-Black-CGD
KD-C1PLUS-Black-CGD
KD-C1PLUS-Red-CGD
KD-C1PLUS-Red-CGD
KD-C1PLUS-Red-USB
KD-C1PLUS-Red-USB
KD-C1PLUS-Black-USB
KD-C1PLUS-Black-USB
KD-C1PLUS-white
KD-C1PLUS-white
KD-C1PLUS-white-USB
KD-C1PLUS-white-USB
Clear
Sold By: Two-Way Radio
SKU: 33008489124 Categories: ,

Description

WLN KD-C1plus mini Walkie Upgraded Radio UHF 400-470MHz slim transceiver better than KD-C1 led indicator two way radios

Note: if you need software, please contact us.

Comparison of WLN KD-C1 and KD-C1PLUS

kd-c1 & kd-c1plus

For WLN KD-C1Plus program

KD-C1PLUS编程

Feature:

50 CTCSS/105 CDCSS

VOX Function

Voice Prompt

PC Programming

Emergency Alarm

Intelligent Charging

Battery Save

Low Voltage Alert

Time-out Timer

20190624_091453_00020190624_091453_00120190624_091453_002KD-C1plus (2)20190624_091453_004d7441ebf596f383b0bbbdb14dd9afe4a20190624_091453_00520190624_091453_00620190624_091453_007

Specification:

General Specifications



Frequency Range

UHF 400-470MHz

Channel Capacity

16

Channel Spacing

25KHz

Operated Voltage

3.7 V

Battery

1500MAh Li-ion

Battery Life(5-5-90 duty cycle) About 8 hours



Frequency Stability

±2.5ppm

Operated Temperature

-30°c-+60°c

Antenna Impedance

50Ω

Dimensions (L×W×H) (with battery,without antenna)

110×50×32 mm

Weight (with battery/antenna)

125g

Communication Range

about 6km

Transmitter



RF Power Output
Modulation

<5W
F3E

Spurious Emission

≤65dB

FM Noise

≤-45dB(W) ≤-40dB (N)

Audio Distortion

≤5%

Transmitting Current

≤1.3A

Receiver



Sensitivity (12dB SINAD)

≤0.20 uV

Selectivity

55dB/50dB

Intermodulation

≥65dB

Adjacent Channel Selectivity ≥60dB



Spurious Response

≥60dB

FM Noise

45dB/40dB

Audio Power Output

1000mW

Audio Distortion

≤5%

Standby Current

≈15mA (with battery save on)

KD-C1plus (14)

Standard Packaging:

1* KD-C1plus Radio body

1* Li-ion Battery in Radio

1* USB charger cable

1* Red Belt Clip

1* Users Manual in EN

1* USB charger (US-2pin/ EU-2pin /UK-3pin / AU-2pin optional )

Additional information

Ships From

CHINA, Russian Federation

Color

KD-C1PLUS-Red, KD-C1PLUS-Black, KD-C1PLUS-white-CGD, KD-C1PLUS-Black-CGD, KD-C1PLUS-Red-CGD, KD-C1PLUS-Red-USB, KD-C1PLUS-Black-USB, KD-C1PLUS-white, KD-C1PLUS-white-USB
