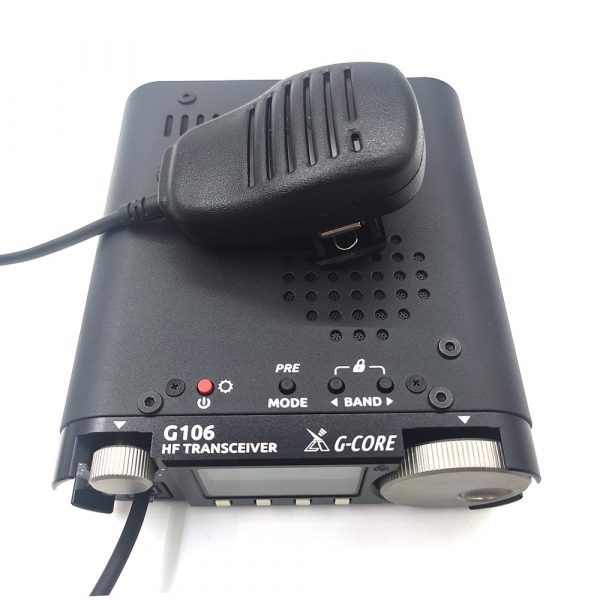

Original XIEGU G106 HF Portable Transceiver SDR 5W SSB CW AM Three Modes WFM Broadcast Reception
G106 is a 5W portable QRP model with SDR circuit structure which uses 16bit-CODEC sampling and can
deliver superior performance. The whole machine has SSB/CW/AM three modes and extra WFM (88~108MHz)
receiving function, allowing you to listen to local FM broadcasts while communicating. Equipped with a CW digital
filter with three bandwidths, it can help you connect to more and farther radio stations. With the external DE-19
digital adapter (optional), it can be easily connected to the computer and complete FT8 communication.
As an entry-level portable SDR transceiver, G106 will be a good helper for you to play CW and FT8.
Basic features:
High-performance SDR core circuit
Compact and robust structure
Transmission and receiving of all amateur frequency bands within 3.8~29.7MHz
WFM broadcast receiving
Shortwave full-range continuous receiving
Amateur data communication available
Computer online control available
Specifications
Receiving frequency: 0.55~30MHz
88~108MHz(WFM)
Transmitting frequency:
3.5~3.9MHz
7.0~7.2MHz
10.1~10.15MHz
14.0~14.35MHz
18.068~18.168MHz
21.0~21.45MHz
24.89~24.99MHz
28.0~29.7MHz
Operating mode: SSB/CW/AM
WFM (receive only)
Receiving sensitivity: CW: 0.25uV @10dB S/N
SSB: 0.5uV @10dB S/N
AM: 10uV @10dB S/N
Frequency stability: ±1.5ppm within 30min after power on
@25°C: 1ppm/hour
Transmitting power: ≥5W @13.8V DC
Transmitting spurious suppression: ≥50dB
Audio output power: 0.3W
Operating voltage:
9~15V DC
Standby current:
0.37A @Max
Transmitting current:
2.8A @Max
Dimensions:
120*40*135 (mm)
Weight:
About 720g (only host)
○ All specifications are typical and apply to
amateur bands only. Due to technical
improvements, the above specifications are
subject to change without notice.
○ The operating frequency range of transceivers
sold in different countries or regions will be set
according to local regulations. Ask local dealer
for details.
Connection of External Power Supply
EMC ferrite bead can be applied on power lines to prevent external disturbance from entering radio via power lines and radio-
frequency interference in radio from radiating externally via power lines when external power supply is adopted for G106. Ferrite bead
shall be installed at the side closing to power plug to greatest extent.
Polarity of power lines shall be carefully inspected to avoid reverse polarity connection when external
power supply is adopted.
The limited warranty of the radio does not cover damage caused by an error in external power
connection or damage caused by an abnormal power voltage.
Packing list
G106 host 1 set
Standard hand microphone 1 no.
Power line 1 pc.
Warranty card 1 copy
Manual 1 copy
Certificate of conformity 1 copy
