Xiegu G106C Portable SDR Shortwave Radio 5W HF Transceiver QRP WFM Radio FT8

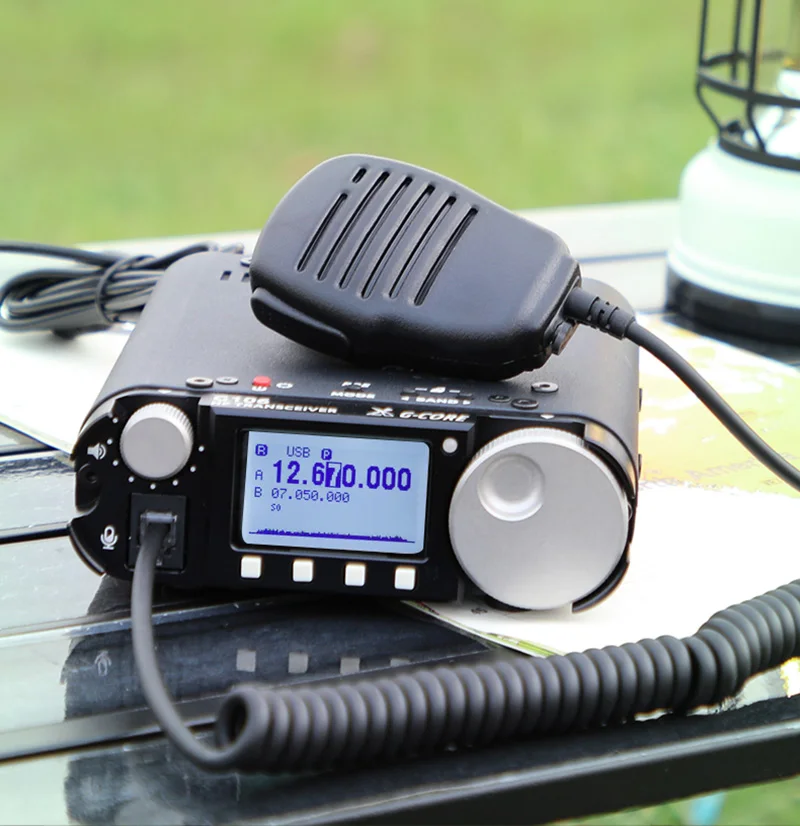

Xiegu G106C Portable Shortwave Transceiver

Describe:

SDR core architecture, high-performance SDR core circuit design. 16bit-CODEC sampling brings outstanding performance.

5W portable QRP, compact and sturdy structure, supports 3.8~29.7MHz amateur frequency band transceiver.

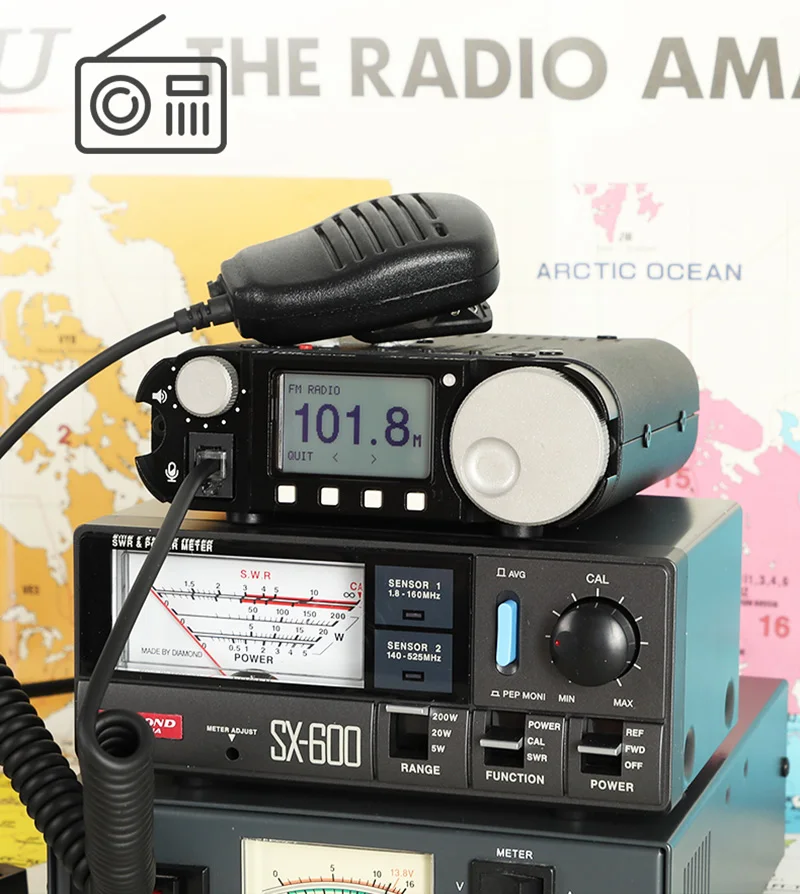

FM radio, in addition to SSB/CW/AM mode, allows you to listen to local FM radio while communicating.

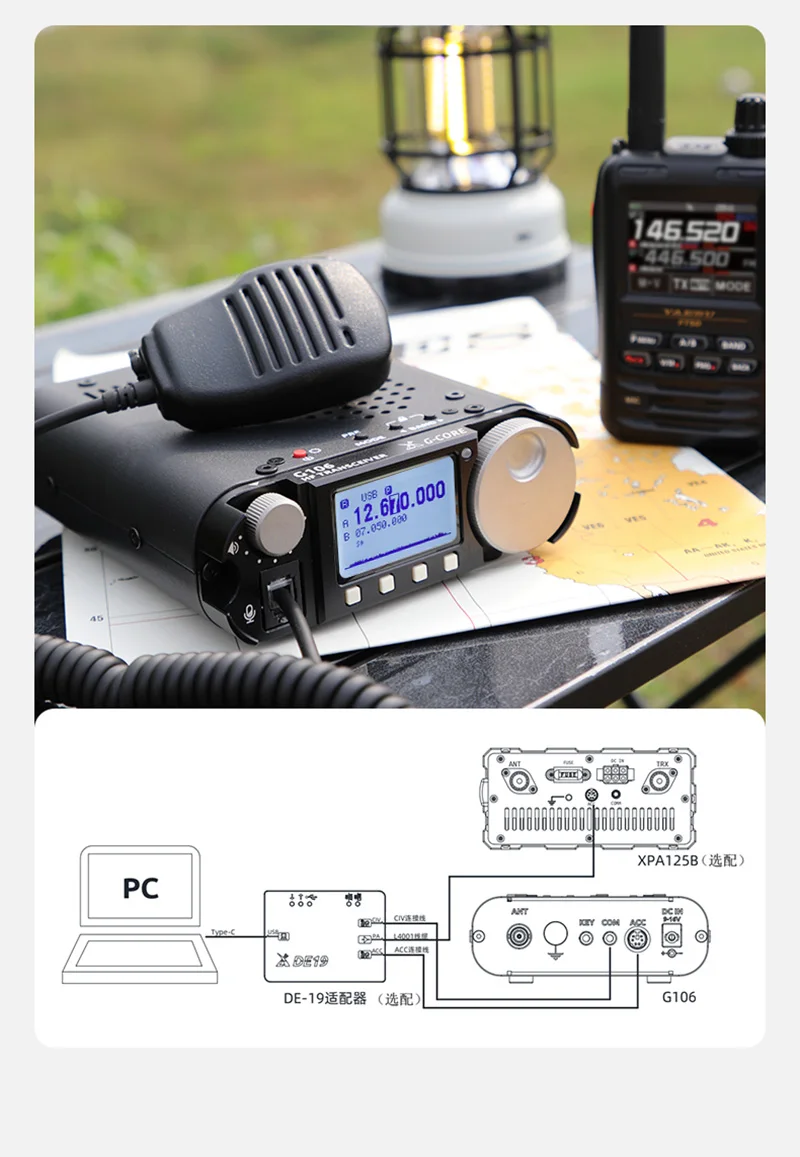

Computer control, amateur data communication. With DE-19 digital adapter (optional), it can be easily connected to a computer to complete FT8 communication.

Scope:

Product name: Xiegu G106C

Receiving frequency: 0.55~30MHz, 88~108MHz (WFM)

Transmission frequency:
3.5~3.9MHz, 7.0~7.2MHz
10.1~10.15MHz, 14.0~14.35MHz
18.068~18.168MHz, 21.0~21.45MHz
24.89~24.99MHz, 28.0~29.7MHz

Working mode: SSB/CW/AM WFM (receive only)

Receive Sensitivity:
CW:0.25UV@10DB S/N
SSB: 0.5UV@10DB SNR
Morning: 10UV@10DB serial number

Frequency Stability:
±1.5ppm within 30 minutes after power-on
@25℃: 1ppm/hour

Transmit power: ≤10W@13.8V DC

Emission spurious suppression: ≥50dB

Audio output power: 0.3W

Working voltage: 9~15V DC

Standby current: 0.37A@Max

Emission current: 2.8A@Max

Body size: 120*40*135mm

Weight: about 720g (host only)

Shipping list:
G106C host*1
Standard Hand Microphone*1
Power cord*1
Manual*1
Certificate*1
Warranty card*1
